REAR SPOKE SET 16"x28 KAWASAKI KX80 84-00, KX85 01-24, KX100 98-21, KX112 22-24

Rear Spoke & Nipple stainless steel set 16" - 28, 9G/250- 28,
Cross-Center 50-0016

KAWASAKI
KX 80 1988-2000
KX 85 2001-
KX 100 1998-

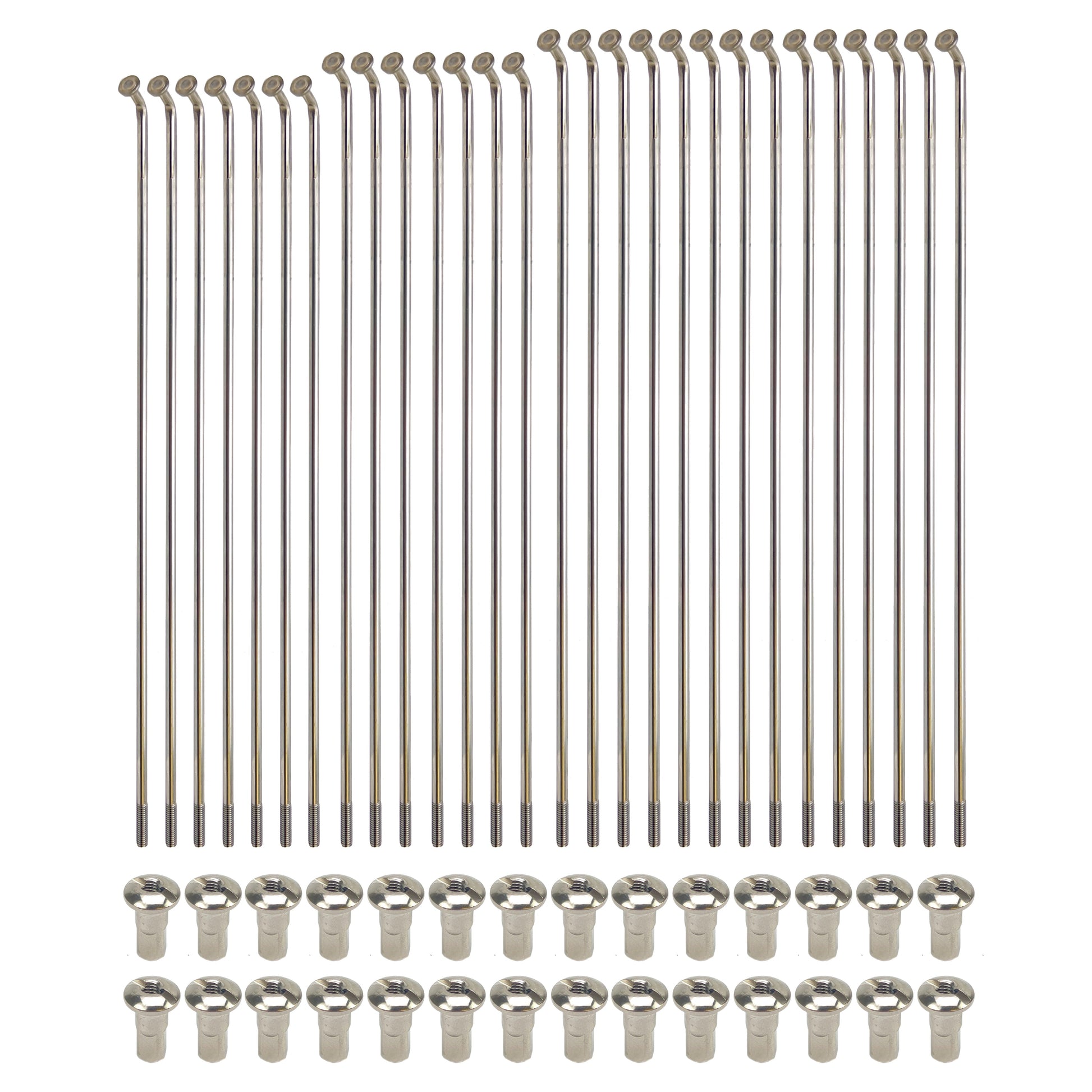

This spoke set has 28 spokes with nickel plated steel nipples.

Part No. 85-667

Cross Reference Numbers Only:
Spoke size: 7 of 3,2x171 mm. This is the outer spoke of the sprocket side. OEM Ref. 41030-1151.
Spoke size 7 of 3,2x175 mm. This is the inner spoke of the sprocket side. OEM Ref. 41030-1161.
Spoke size: 14 pcs. 3,2x179 mm. This is the spokes on the disc side. OEM Ref. 41029-1278.

Nipple size: 6,4x17 mm. If the spoke nipple holes are smaller or larger you may need to change spoke nipples to another size.
