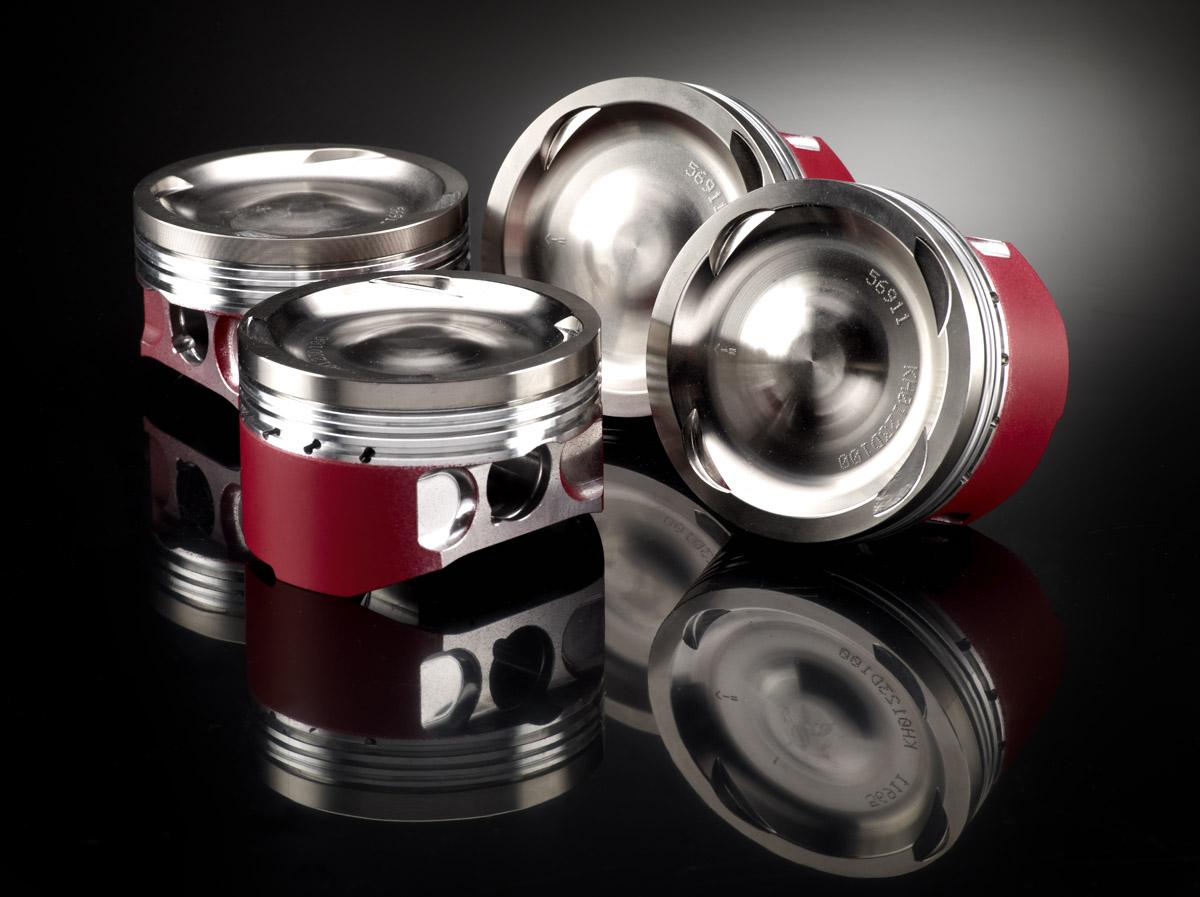

WOSSNER 83mm PISTON KIT SUZUKI GSX1300R HAYABUSA 1999-2007, (X4) Pro Series

�

Piston kit 83.00mm Bore 82.95 Wossner SET/4 K4017D200-4 (+2MM)

SUZUKI
HAYABUSA 1999 - 2007, (3 Rings)
(Pro series)

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

�

Part No: 56-W9897.200.NC.WO

SUZUKI HAYABUSA HC / 3-Ring 1999-2007,

PISTON KIT SET/4 WOSSNER K4017D200-4 STD BORE 83.00mm.

COMP.HEIGHT 25.25mm

Oversize: +2.00MM

Hub stroke (mm) 63.00

Clearance (mm) 0.05

Wossner compression Ratio: 12.50:1

Compression height (mm) 25.25

Theorectical weight (G)

Cross reference numbers ONLY.

CLIP No. CW20,

PISTON PIN No. WP029-SP

REPLACEMENT RING SET No. RIK81.00A

�

�

�

�
