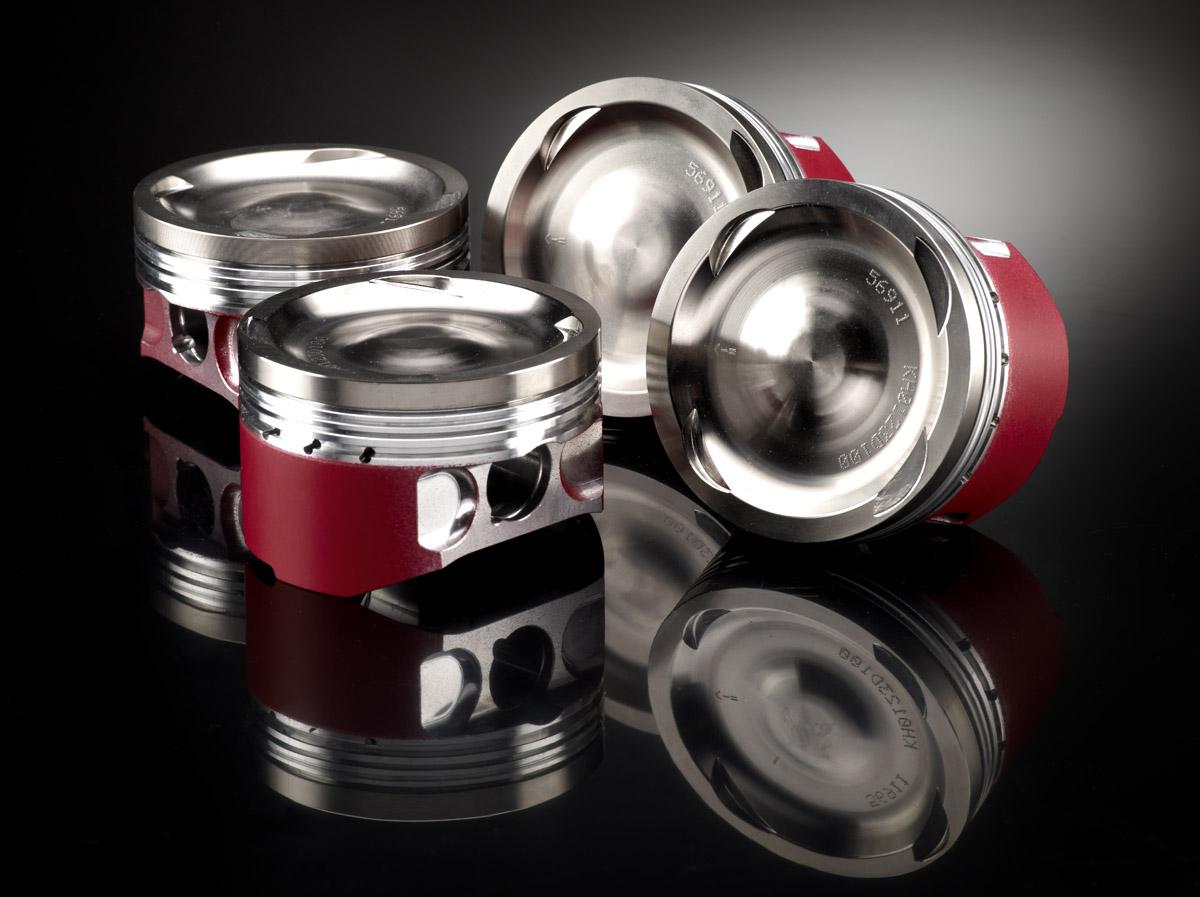

WOSSNER 81mm PISTON KIT SUZUKI GSX1300R HAYABUSA 1999-2007, (X4) Pro Series

�

Piston kit 81.00mm Bore 80.95 Wossner SET/4 K4017DA-4 (STD)

SUZUKI
HAYABUSA 1999 - 2007, (3 Rings)
(Pro series)

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

Part No: 56-W9897.000.NC.WO
SUZUKI HAYABUSA HC / 3-Ring 1999-2007,
PISTON KIT SET/4 WOSSNER K4017DA-4 STD BORE 81.00mm.
DISPLACEMENT 1299cc
COMP.HEIGHT 25.25mm

Hub stroke (mm) 63.00
Clearance (mm) 0.05
Wossner compression Ratio: 12.00:1
Compression height (mm) 25.25
Theorectical weight (G) 228.00

Cross reference numbers ONLY.
CLIP No. CW20,
PISTON PIN No. WP029-SP
REPLACEMENT RING SET No. RIK81.00A

�

�
