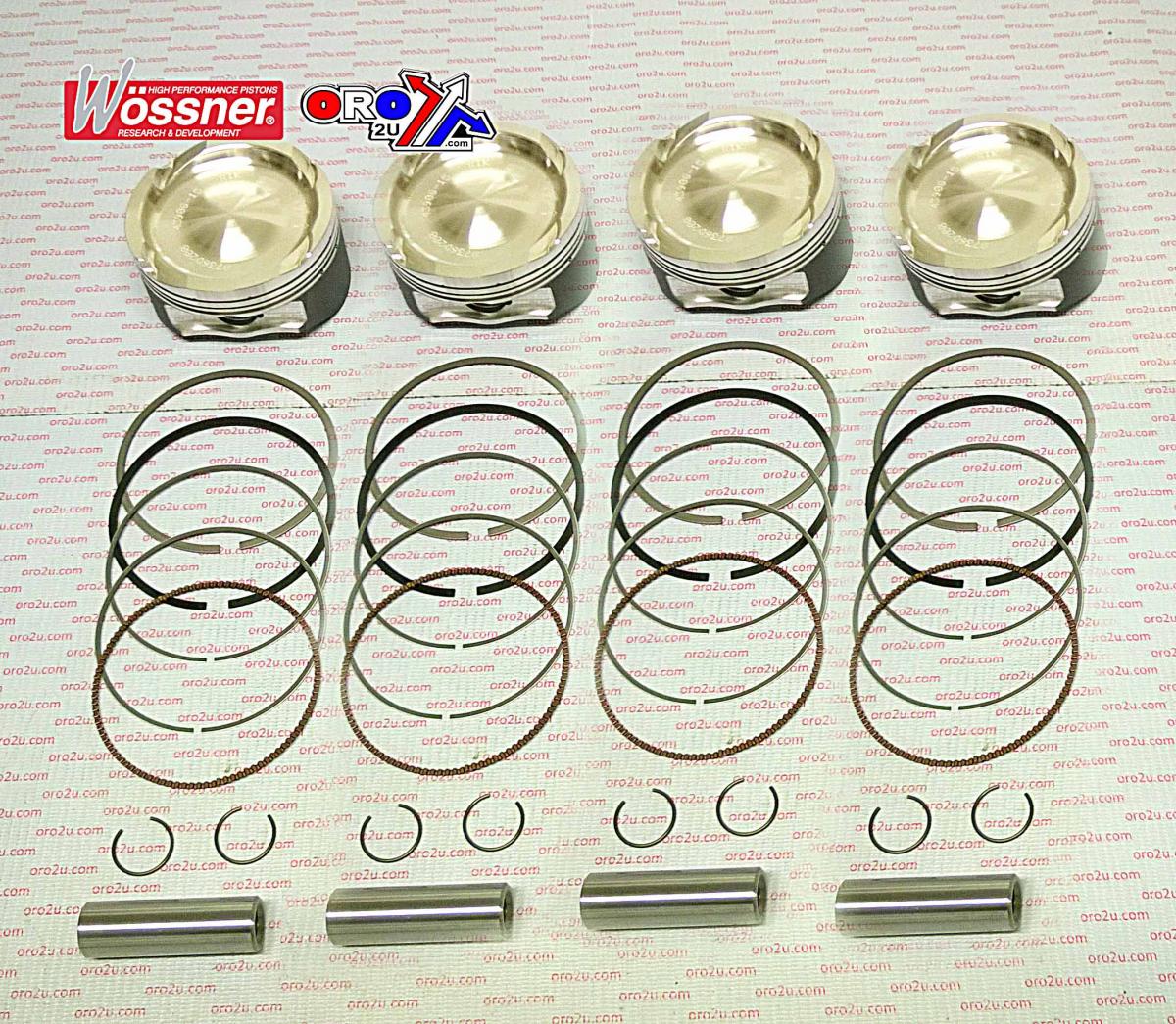

WOSSNER 81mm PISTON KIT SUZUKI GSX1300R HAYABUSA TURBO 2008-2020 (X4)

Piston kit 81.00mm Bore 80.92 Wossner SET/4 K8736DA-4 (STD)

SUZUKI
HAYABUSA Turbo 2008-ON,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

Part No. 56-W9896.000.WO
SUZUKI HAYABUSA TURBO 2008-ON,
PISTON KIT SET/4 WOSSNER K8736DA-4 STD BORE 81.00mm.
DISPLACEMENT 1340cc

Display (cm3) 1340 / 1406
Hub stroke (mm) 65.00
Clearance (mm) 0.08
Wossner compression Ratio: 9.00:1
OEM Compression ratio: 12.50:1
Dome volume (cm3) -19.40
Compression height (mm) 24.00
Theorectical weight (G)

Cross reference numbers ONLY.
CLIP No. CW18,
PISTON PIN No. WP064
REPLACEMENT RING SET No. RIK81.00A

�
