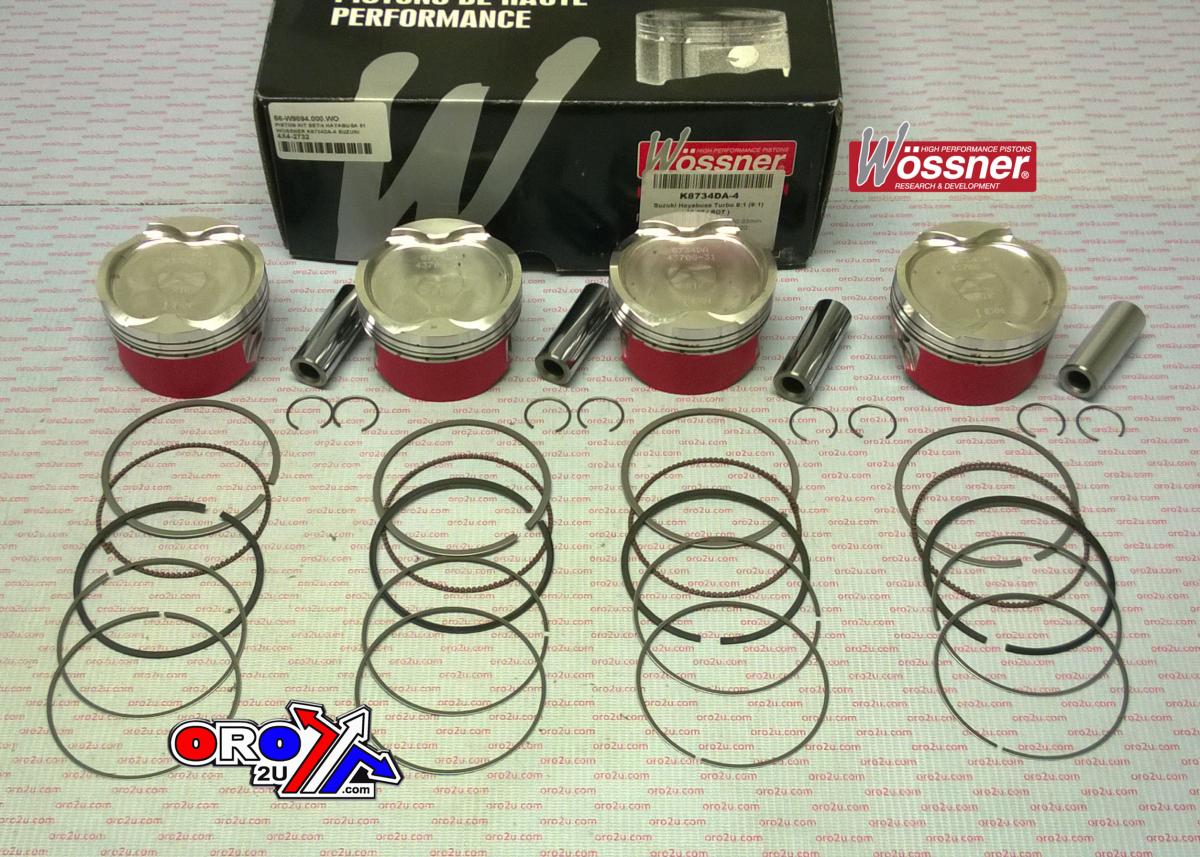

WOSSNER 81mm PISTON KIT SUZUKI GSX1300R HAYABUSA 1999-2007 (X4)

Piston kit 81.00mm Bore 80.93 Wossner SET/4 K8734DA-4 (STD)

SUZUKI
HAYABUSA TURBO GSX R 1300 1999-2007,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

Part No. 56-W9894.000.WO
CLIP No. CW20,
PIN No.WP065
RINGS No. RIK81.00A

Display (cm3) 1299 / 1362
Hub stroke (mm) 63.00
Clearance (mm) 0.07
Wossner compression Ratio: 9.00:1 �
OEM Compression ratio: 11.00:1
Dome volume (cm3) -17.80
Compression height (mm) 26.80
Theorectical weight (G)

DISPLACEMENT 1300cc

COMP.RATIO COMP.HEIGHT 26.80mm

�
