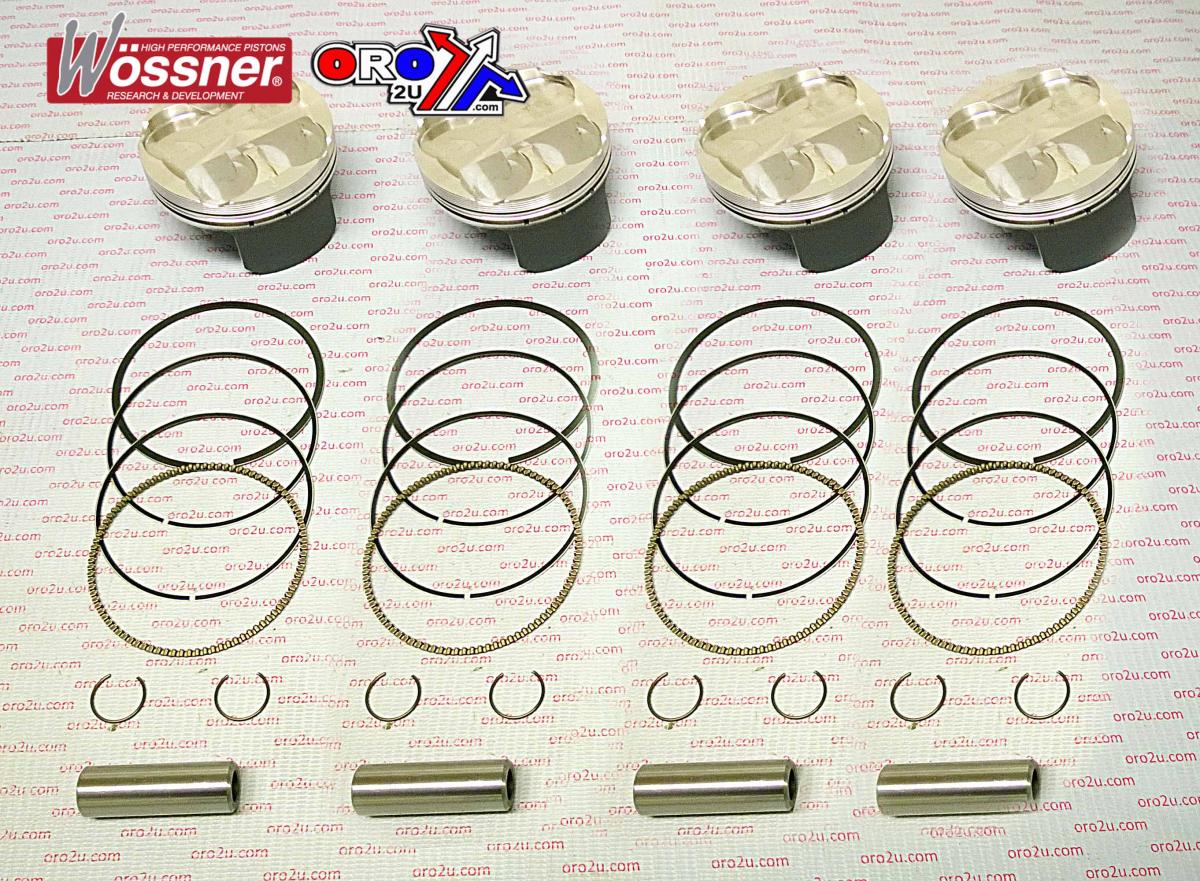

WOSSNER 75mm PISTON KIT SUZUKI GSX-R1000 2005-2008

Piston kit 75mm Bore 74.96 Wossner SET/3 �K8700D160-4 (+1.60mm)

SUZUKI �
GSXR1000 2005-2008,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W9893.160.WO
SUZUKI GSXR1000 2005-2008,
PISTON KIT SET/4 WOSSNER K8700D160-4 O/S +1.60mm 75.00mm.

CLIP No. CW15,
PIN No. WP011,
RINGS No. RIK75.00L

Display (cm3) 988 / 1024 / 1070
Hub stroke (mm) 59.00
Clearance (mm) 0.04
Wossner compression Ratio: Display (cm3) 998 - 14.00:1 / 1024 - 14.60:1 / 1070 - 14.90:1
OEM Compression ratio: 12.50:1
Dome volume (cm3) -4.40
Compression height (mm) 22.55
Theorectical weight (G)

DISPLACEMENT 1024cc
