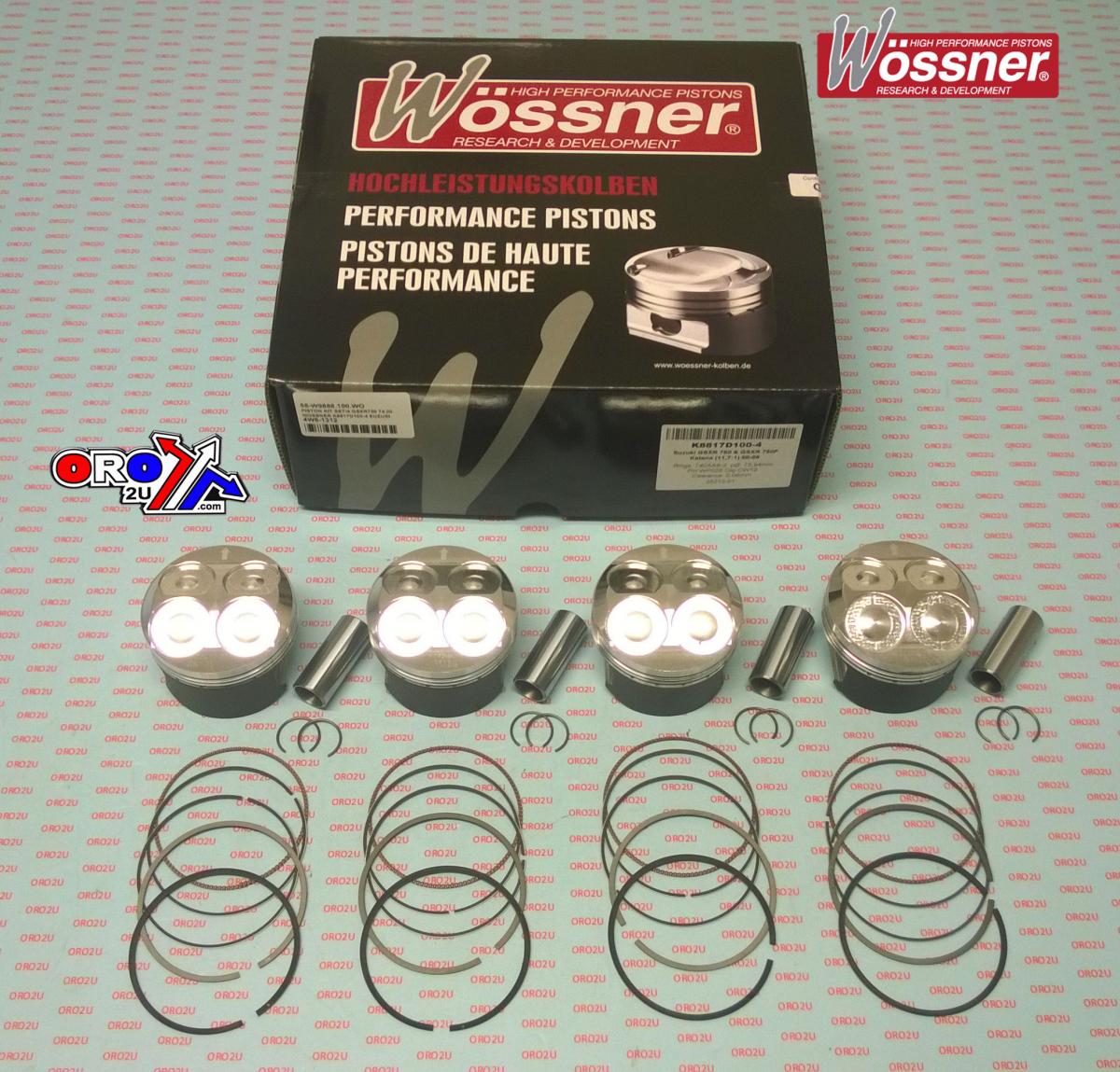

WOSSNER 74mm PISTON KIT SUZUKI GSXR750 88-89, GSX-F750 89-97 (X4)

Piston kit 74mm Bore 73.94 Wossner SET/3 K8817D100-4 (STD)

SUZUKI
GSXR750 1988 - 1989,
GSXR750F Katona 1989 - 1997,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W9888.100.WO
SUZUKI GSXR750 1988-1989, SUZUKI GSXR750F 1989-1997,
PISTON KIT SET/4 WOSSNER K8817D100-4 O/S 1.00mm 74.00mm.

CLIP No. CW19,
PIN No. WP028,
RINGS No. 740XAS

Display (cm3) 771
Hub stroke (mm) 44.7
Clearance (mm) 0.06
Wossner compression Ratio: 11.70:1
OEM Compression ratio: 10.90:1
Dome volume (cm3) +5.70
Compression height (mm) 23.80
Theorectical weight (G)
