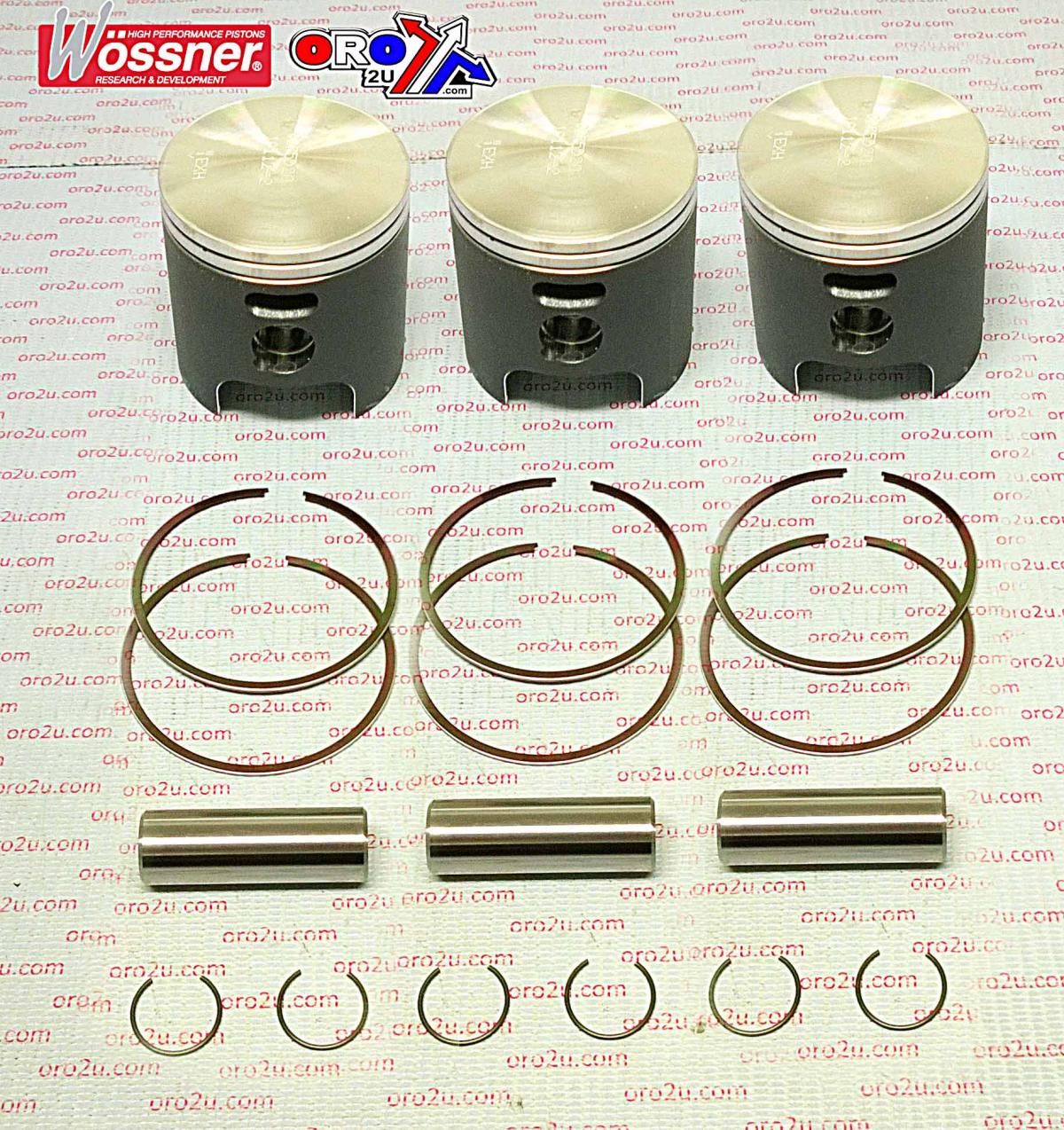

WOSSNER 57.5mm PISTON KIT KAWASAKI S3 400 1974-1975 (X3)

Piston kit 57.50mm Bore 57.44 Wossner �K8275D050-3 (+0.5mm)

KAWASAKI
400 S3 1974 - 1975,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

Part No. 56-W9885.050.WO
KAWASAKI 400 S3 1974-1975,
PISTON KIT SET/3 WOSSNER K8275D100-3 O/S 0.50mm 57.50mm.

Clip part no - CW17
Piston pin- WP083
Ring set - RSB5750 x 2

Display (cm3) 400
Hub stroke (mm) 52.30
Clearance (mm) 0.06
Wossner compression Ratio:2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3) -
Compression height (mm) 28.50
Theorectical weight (G)
