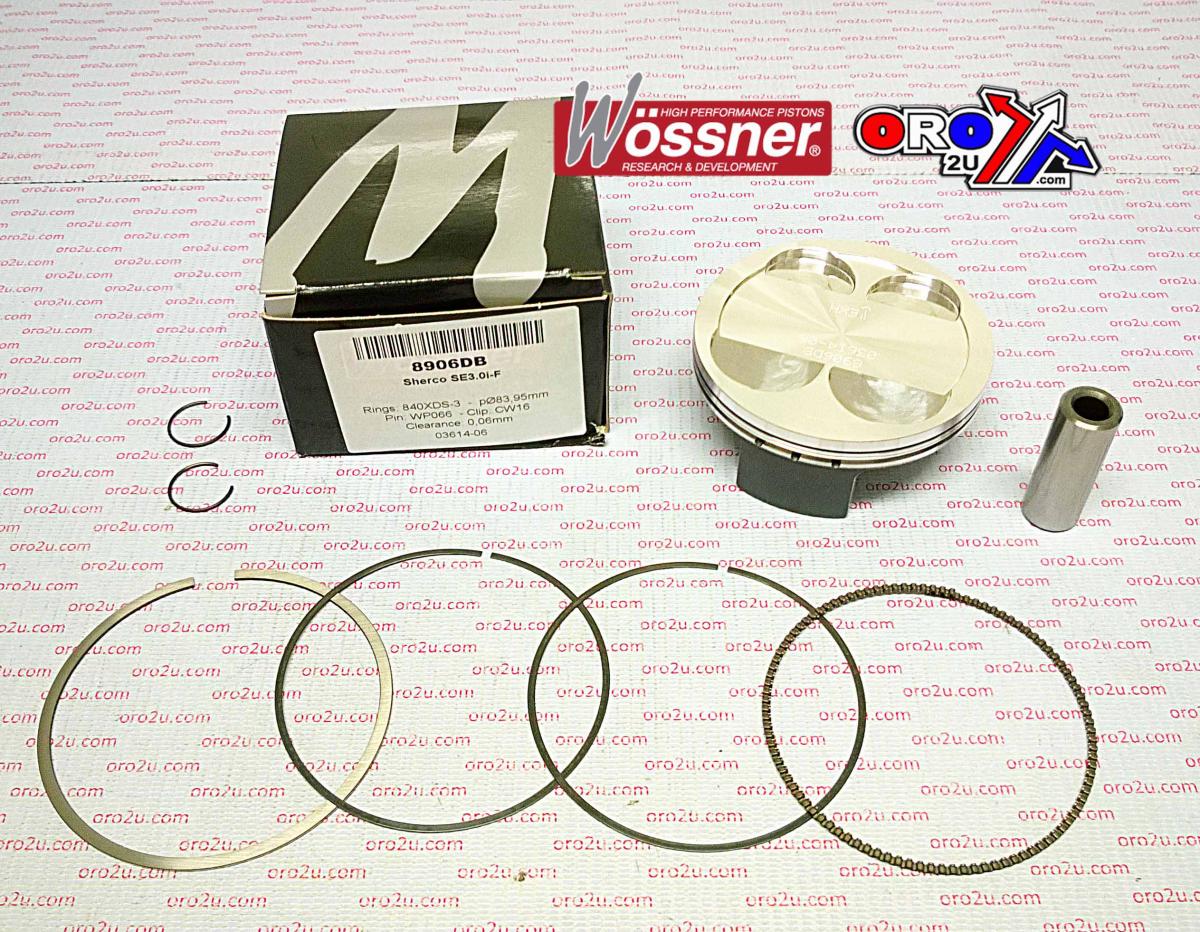

WOSSNER 84mm PISTON KIT A, SHERCO 300 SE3.0i-F 2010-2016

Piston kit 84mm Bore 83.94 Wossner �8906DA (STD)

SHERCO
300 SE3.0i-F 2010-2016,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W9880.A.WO
SHERCO 4 stk. 300 SE3.0i-F 2010-2016,
WOSSNER 8906DA FORGED PISTON KIT Bore 84.00mm.
Clip part no - CW16
Piston pin- WP066
Ring set -840XDS

Display (cm3) 290
Hub stroke (mm) 52.25
Clearance (mm) 0.06
Wossner compression Ratio: OEM
OEM Compression ratio: -
Dome volume (cm3) -5.00
Compression height (mm) 18.90
Theorectical weight (G)
