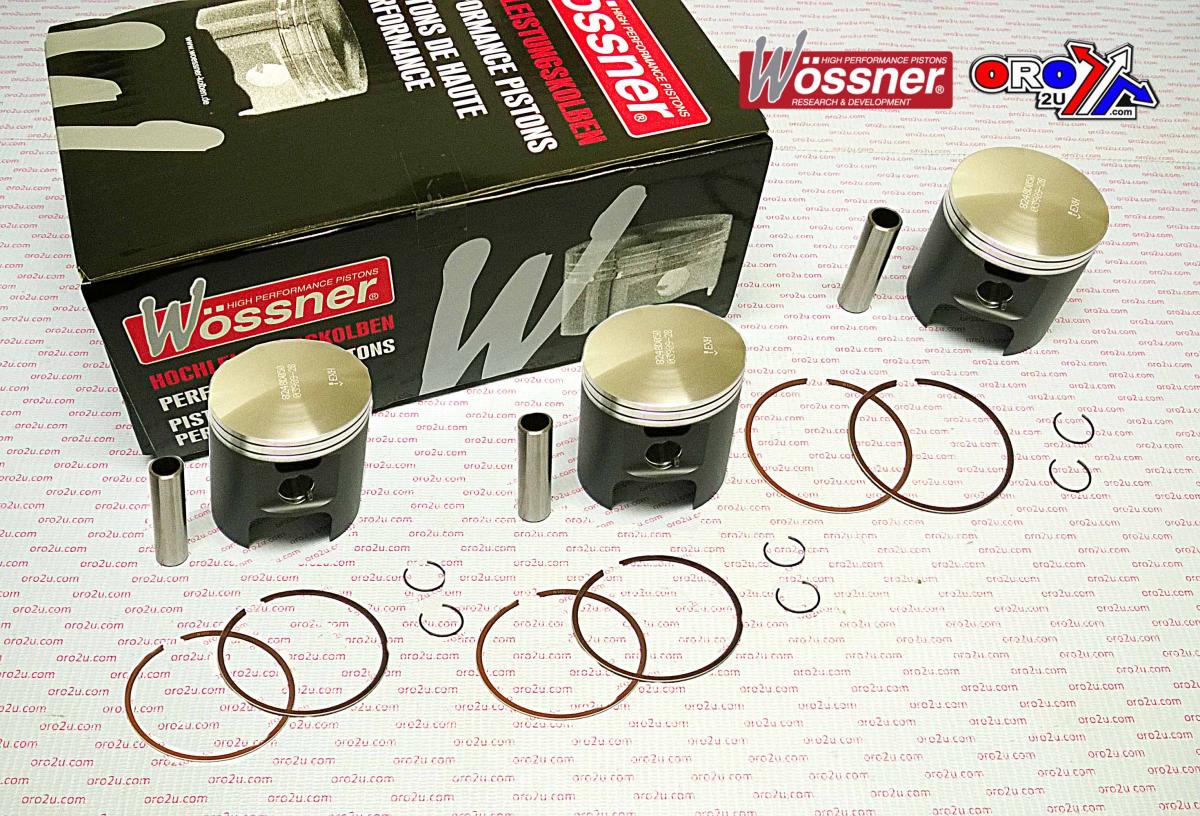

WOSSNER 73.5mm PISTON KIT KH750 TRIPLE 72-75, SET/3

Piston kit 73.50mm BORE 73.43 Wossner K8248D250-3 (+2.5mm)

Kawasaki
750 Mach iv 1972 - 1975,
H2 750 Triple Cylinder 1972-1975 2 Stroke Classic,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W9868.250.WO (oro2u.com)
Clip part no - CW16
Piston pin- WP027
Ring set - RSB7350 x 2

Display (cm3) 747
Hub stroke (mm) 63.00
Clearance (mm) 0.07
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 32.00
Theorectical weight (G)
