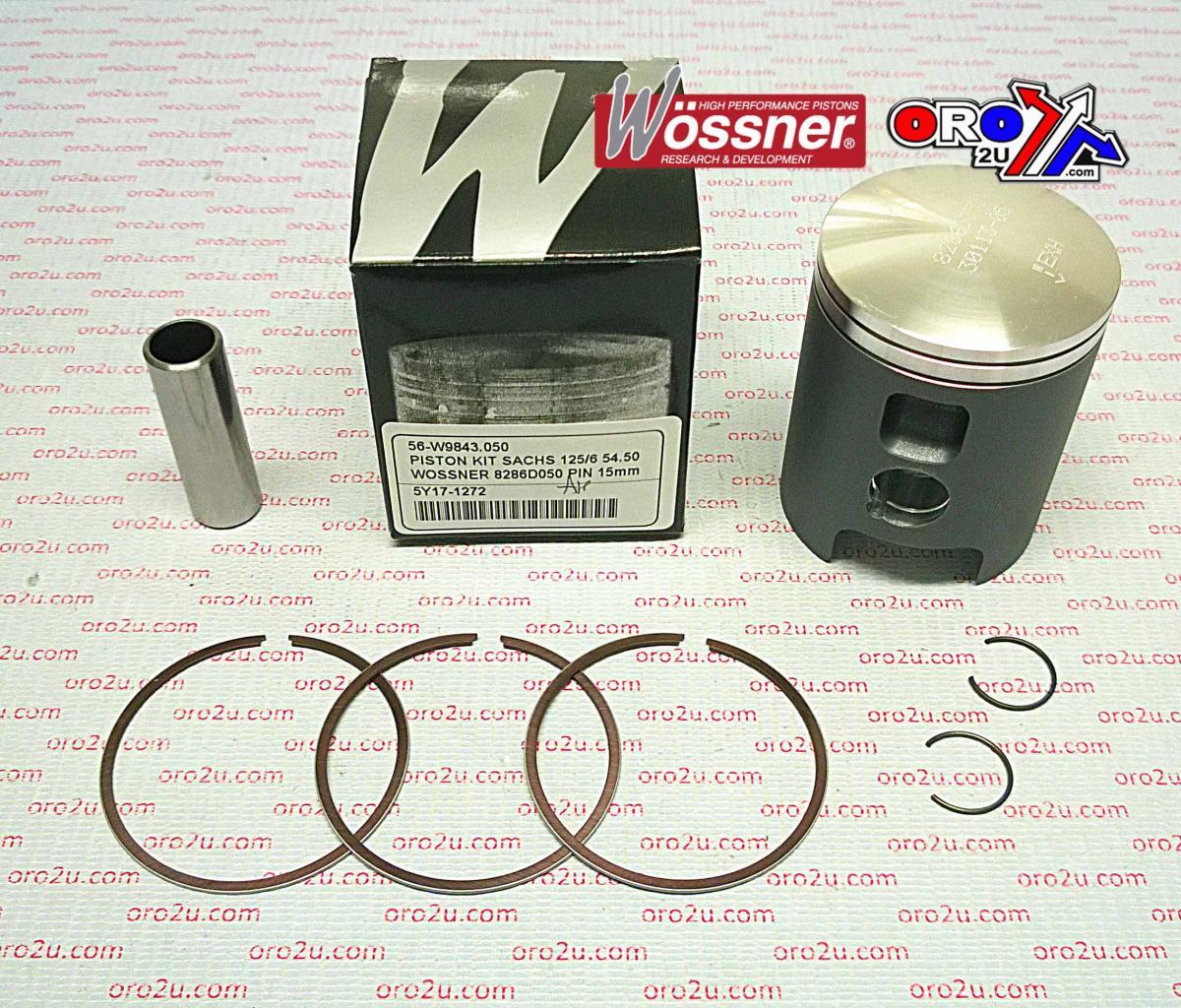

WOSSNER 55mm PISTON KIT SACHS 125/6, PIN 15mm

Piston Kit 55mm Bore 54.94 Wossner 8286DB (+0.01)

SACHS

• 125/6

Wossner forged pistons are superior in strength and design. Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls. Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse. Made in Germany.

• Applications: Sachs 125/6
• Piston Model: Wossner Piston Kit 8286D100 O/S 1.00mm 55.00mm Bore. Compression Height 38mm.
• Cross Reference Numbers ONLY: Clip P/N CW15, Pin P/N WP132, Ring Set P/N RSB5500 x 2
• Display (cm3): 122
• Hub Stroke (mm): 54.00
• Clearance (mm): 0.06
• Wossner Compression Ratio: 2 stroke
• OEM Compression Ratio: 2 stroke
• Compression Height (mm): 38.00
• Theoretical Weight (G):
