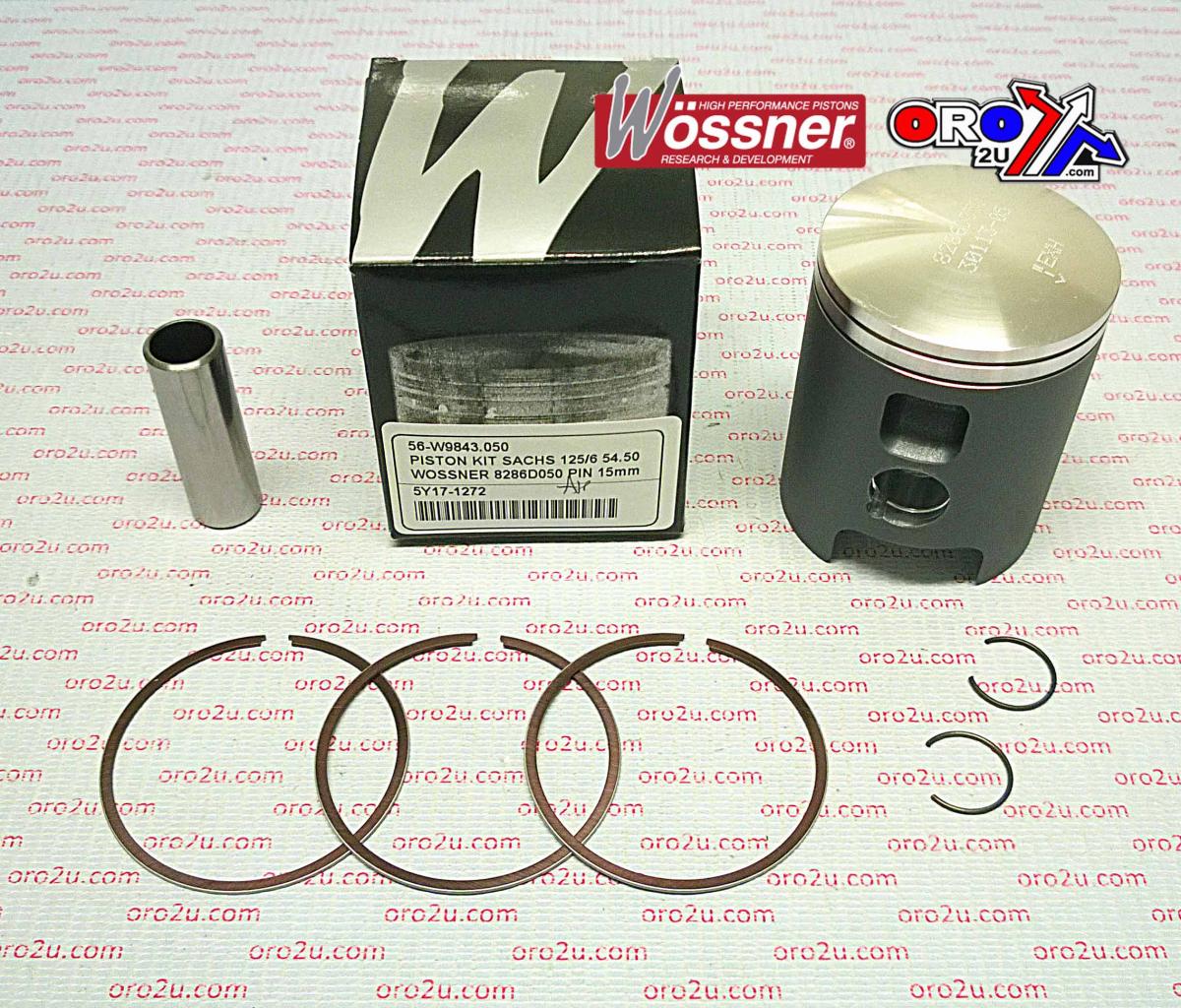

WOSSNER 54.5mm PISTON KIT SACHS 125/6, PIN 15mm

Piston kit 54.50mm BORE 54.44 Wossner 8286DA (STD) �

SACHS
125/6

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W9843.050 (oro2u.com)
SACHS 125/6,
WOSSNER PISTON KIT 8286D050 O/S 0.50mm 54.50mm BORE. Compression Height 38mm.
Cross reference numbers ONLY.
Clip P/N CW15,
Pin P/N WP132,
Ring Set P/N RSB5450, x 2

Display (cm3) 122
Hub stroke (mm) 54.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 38.00
Theorectical weight (G)
