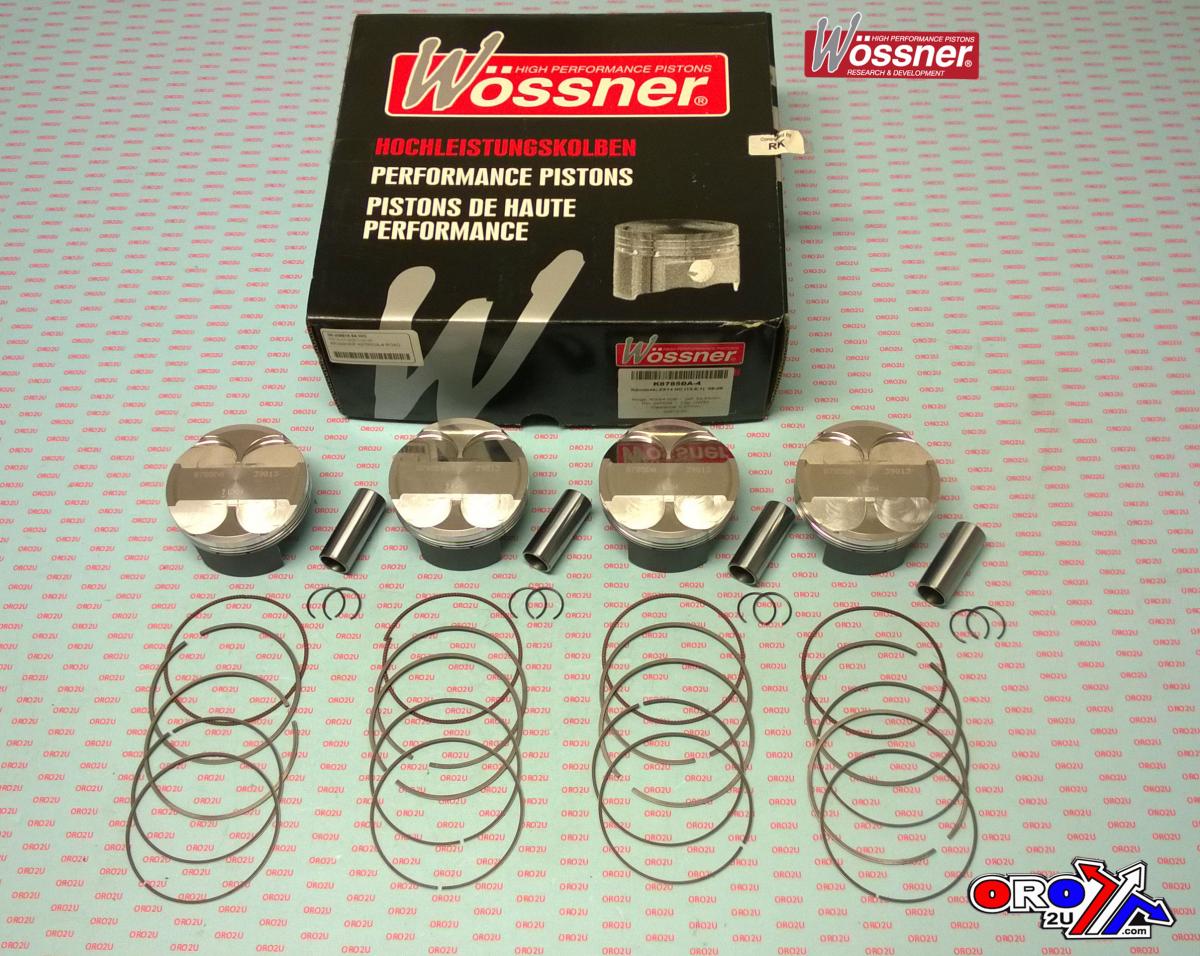

WOSSNER 84mm PISTON KIT KAWASAKI ZX14R/ZZR1400 06-21

Piston kit 84mm BORE 83.93 Wossner K8785DA-4 (STD) �

KAWASAKI
ZX14 2006 - 2009,
(Pro series)

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W9816.84.WO (oro2u.com)
KAWASAKI 2006 - 2009 ZX14 PRO SERIES K8785DA-4 WOSSNER PISTON, 84(mm), HC flat top

Display (cm3) 1198 / 1257
Hub stroke (mm) 61.00
Clearance (mm) 0.07
Wossner compression Ratio:13.50:1
OEM Compression ratio: 12.00:1
Dome volume (cm3) -2.40
Compression height (mm) 24.50
Theorectical weight (G)

�
