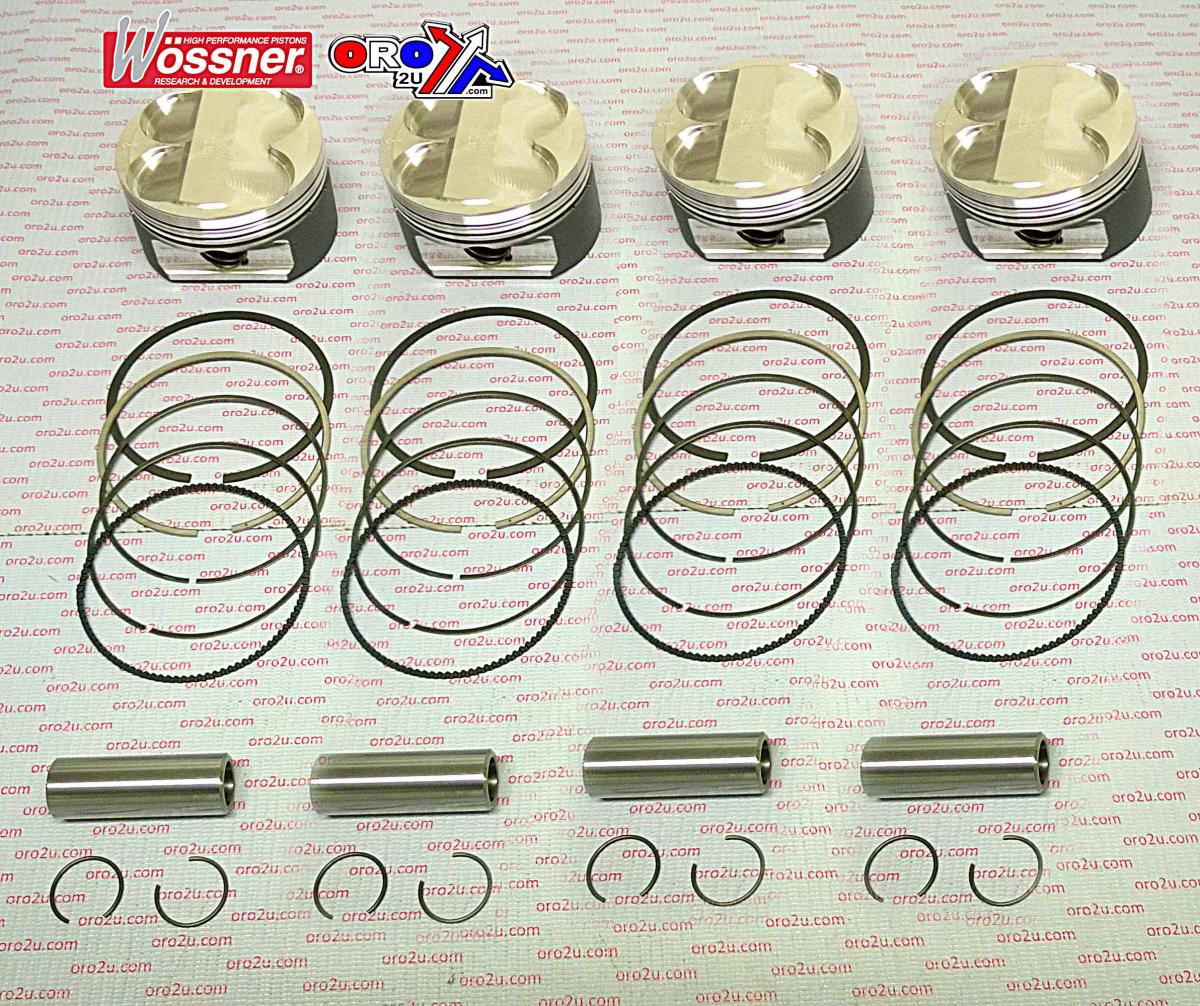

WOSSNER 78mm PISTON KIT/4 KAWASAKI ZZR1100 90-01, ZRX1100 95-97, GPZ1100 95-97

Piston kit 78mm BORE 77.95 Wossner �K8801D200-4 (+2mm) �

KAWASAKI
Z11 1990 - 2001,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W9814.78.WO (oro2u.com)
KAWASAKI 1990 - 2001 ZX11 K8801D100-4 WOSSNER PISTON, 78 (mm),
Stroke 58
Lock P/N CW18
Pin P/N WP031
Ring Set P/N 780XDS

Display (cm3) 1080 / 1109
Hub stroke (mm) 58.00
Clearance (mm) 0.06
Wossner compression Ratio: � OEM
OEM Compression ratio: 11.00:1
Dome volume (cm3) -3.70
Compression height (mm) 25.00
Theorectical weight (G) 209.00

�
