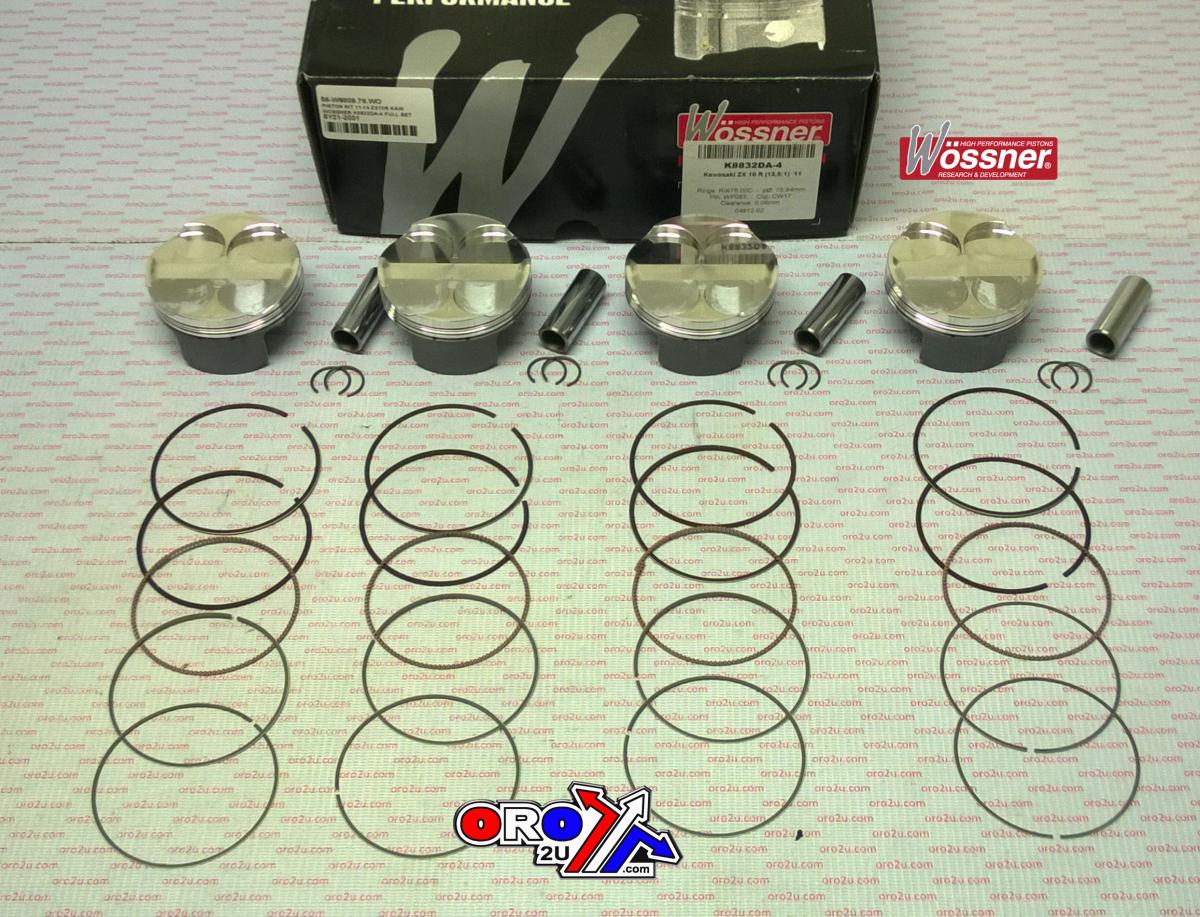

WOSSNER 76mm PISTON KIT KAWASAKI ZX-10R 2011-2015 (X4)

Piston kit 76mm BORE 75.94 Wossner K8832DA-4 (STD) �

KAWASAKI
ZX10R 2011 - 2014,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W9809.76.WO (oro2u.com)
KAWASAKI 2011 - 2014 ZX10R K8832DA-4 WOSSNER PISTON, 76(mm),
Stroke 55
WOSSNER Ratio 13.5:1
Lock P/N CW17
Pin P/N WP038
Ring Set P/N TPR76.00

Display (cm3) 998
Hub stroke (mm) 55.00
Clearance (mm) 0.06
Wossner compression Ratio: 13.50:1
OEM Compression ratio: 13.00:1
Dome volume (cm3) -3.00
Compression height (mm) 22.70
Theorectical weight (G)

�
