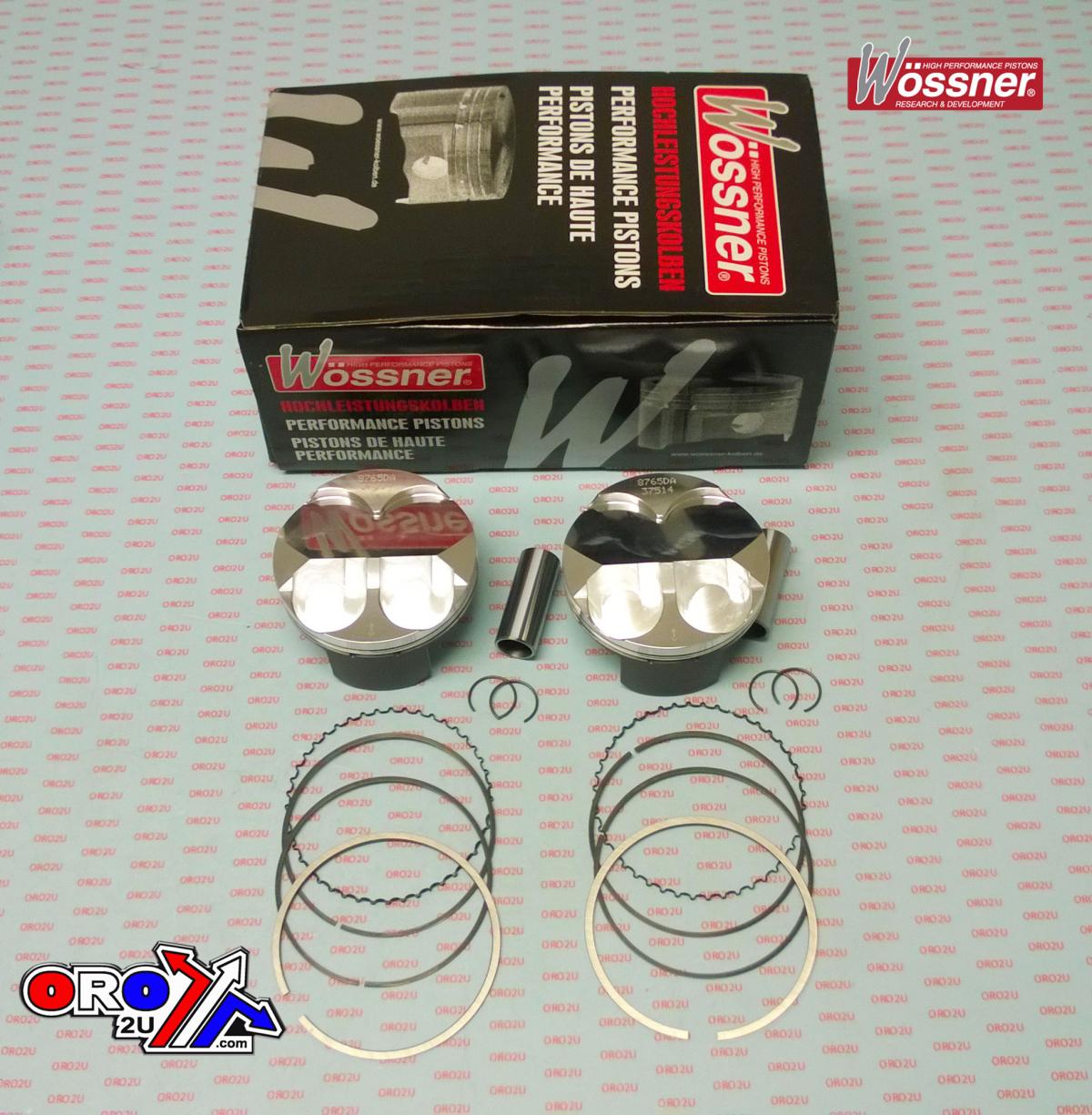

WOSSNER 94mm PISTON KIT DUCATI 848 2007-2008, SET/2

Piston kit 94mm BORE 93.94 Wossner K8765DA-2 � (STD)

DUCATI
848 Racing 2007 - 2008, �

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W9796.94.WO (oro2u.com)
2007 - 2008 DUCATI 848 RACING K8765DA-2 WOSSNER PISTON, 94(mm),

Stroke 61.2mm
OEM Comp. Ratio 12:1
Dome/Bowl Volume -3.2cm
Comp. Height 28mm
Lock P/N CW20
Pin P/N WP038
Ring Set P/N 940XSY

Display (cm3) 1085
Hub stroke (mm) 61.20
Clearance (mm) 0.06
Wossner compression Ratio:OEM
OEM Compression ratio: 12.00:1
Dome volume (cm3)-3.20
Compression height (mm) 28.00
Theorectical weight (G)

�
