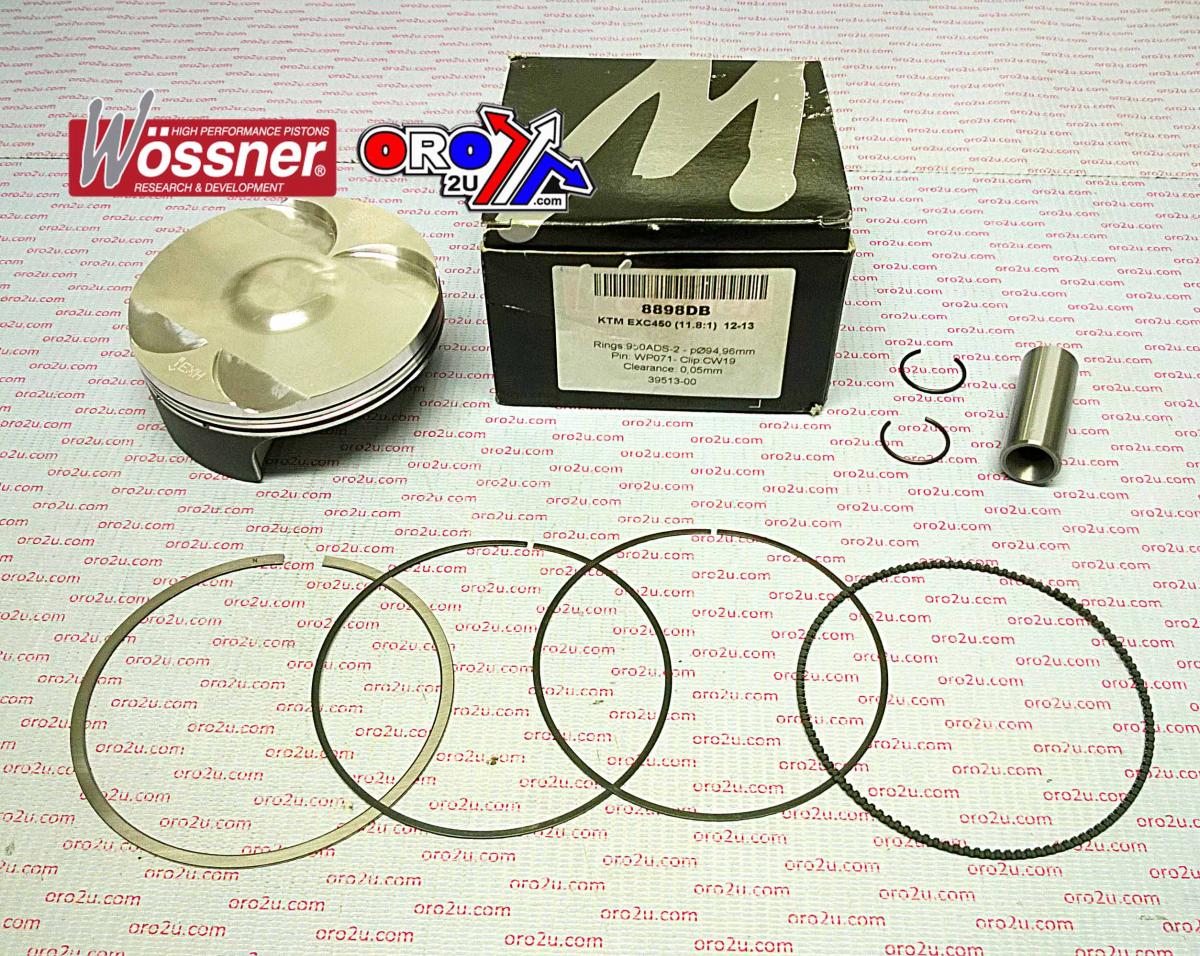

WOSSNER 95mm PISTON KIT C, KTM EXC-F 450 12-20, HUSQVARNA FE450 14-19

Piston kit 95.02mm BORE 94.97 Wossner 8898DC (+0.02MM)

HUSABERG
FE450 � 2014,

KTM
EXC550 2012 - 2014,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W968.C.WO
KTM EXC-F450 2012-2014,
WOSSNER PISTON KIT
Piston Size: 94.97mm
Stroke: 63.4

Display (cm3) 449
Comp. ratio: 11.9:1
Comp. Height (mm) 22.80
RING P/N 950ADS-2
CLIP P/N CW19
PIN P/N WP037
(P/N# 8898DC)

Hub stroke (mm) 63.40
Clearance (mm) 0.05
Wossner compression Ratio: OEM
OEM Compression ratio: 11.80:1
Dome volume (cm3) -1.60
Compression height (mm) 22.80
Theorectical weight (G)
