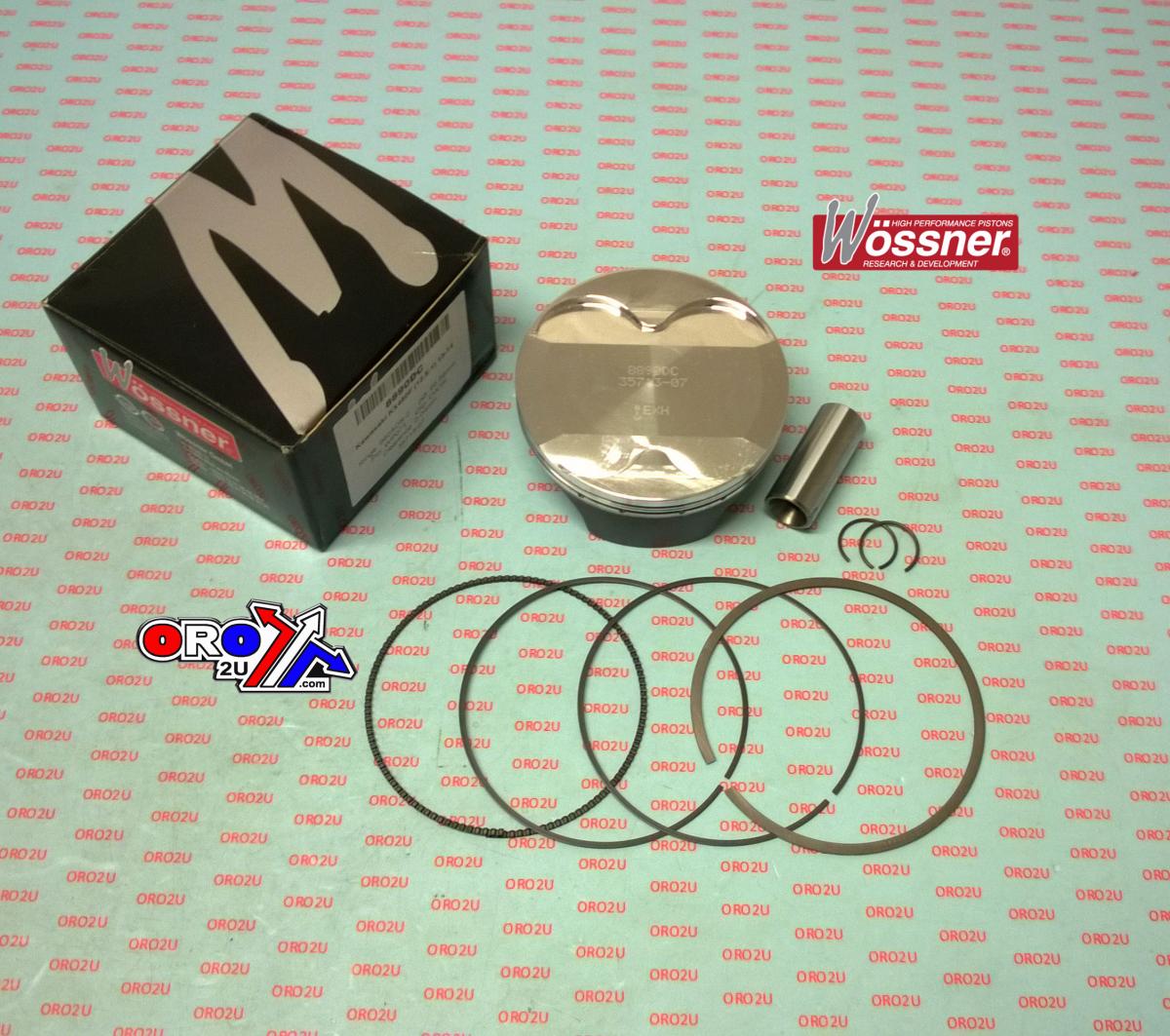

PISTON KIT 13-14 KX450F 96.00 WOSSNER 8890DA KAWASAKI

Piston kit 96mm BORE 95.96 Wossner 8890DA (STD)

KAWASAKI
KX450F 2013 - 2014,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W965.A.WO (oro2u.com) Kawasaki KX450F 2013-14,
Wossner Piston Kawasaki KX450F 96 mm Bore (PN# 8890DA)
Lock P/N CW19
Pin P/N WP071
Ring Set P/N 960ADS-2
Rod P/N P4020

Display (cm3) 449
Hub stroke (mm) 62.10
Clearance (mm) 0.04
Wossner compression Ratio: OEM
OEM Compression ratio: 12.50:1
Dome volume (cm3) +1.00
Compression height (mm) 23.70
Theorectical weight (G)

Cross reference numbers ONLY.
13001-0736, � 40082M09600

�
