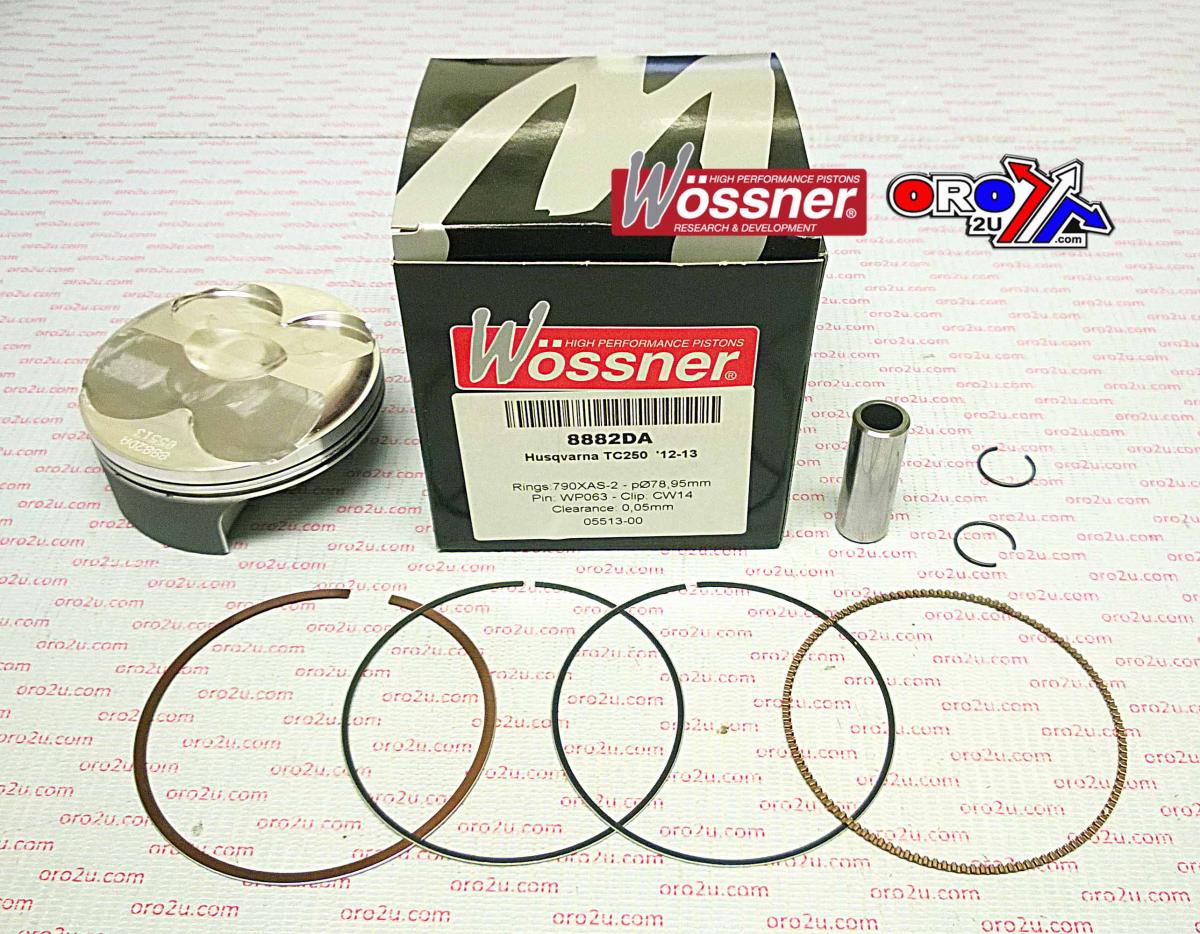

WOSSNER 79mm PISTON KIT B, HUSQVARNA TC250 12-13

Piston kit 79.01mm BORE 78.96 Wossner 8882DB (+0.01mm)

HUSQVARNA
TC250 2012 - 2013,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

PARTC NO. 56-W964.B.WO (ORO2U.COM)HUSKY TC250 2012-2013,
HUSKY TE250 12-13,WOSSNER FORGED PISTON KIT HUSKY TC250 78.96mm HC
PN# 8882DB
CLIP P/N CW14
PIN P/N WP063
RING SET P/N 790XAS-2

Display (cm3) 249
Hub stroke (mm) 53.60
Clearance (mm) 0.05
Wossner compression Ratio: 14.00:1
OEM Compression ratio: 13.60:1
Dome volume (cm3) +4.20
Compression height (mm) 18.00
Theorectical weight (G)

�
