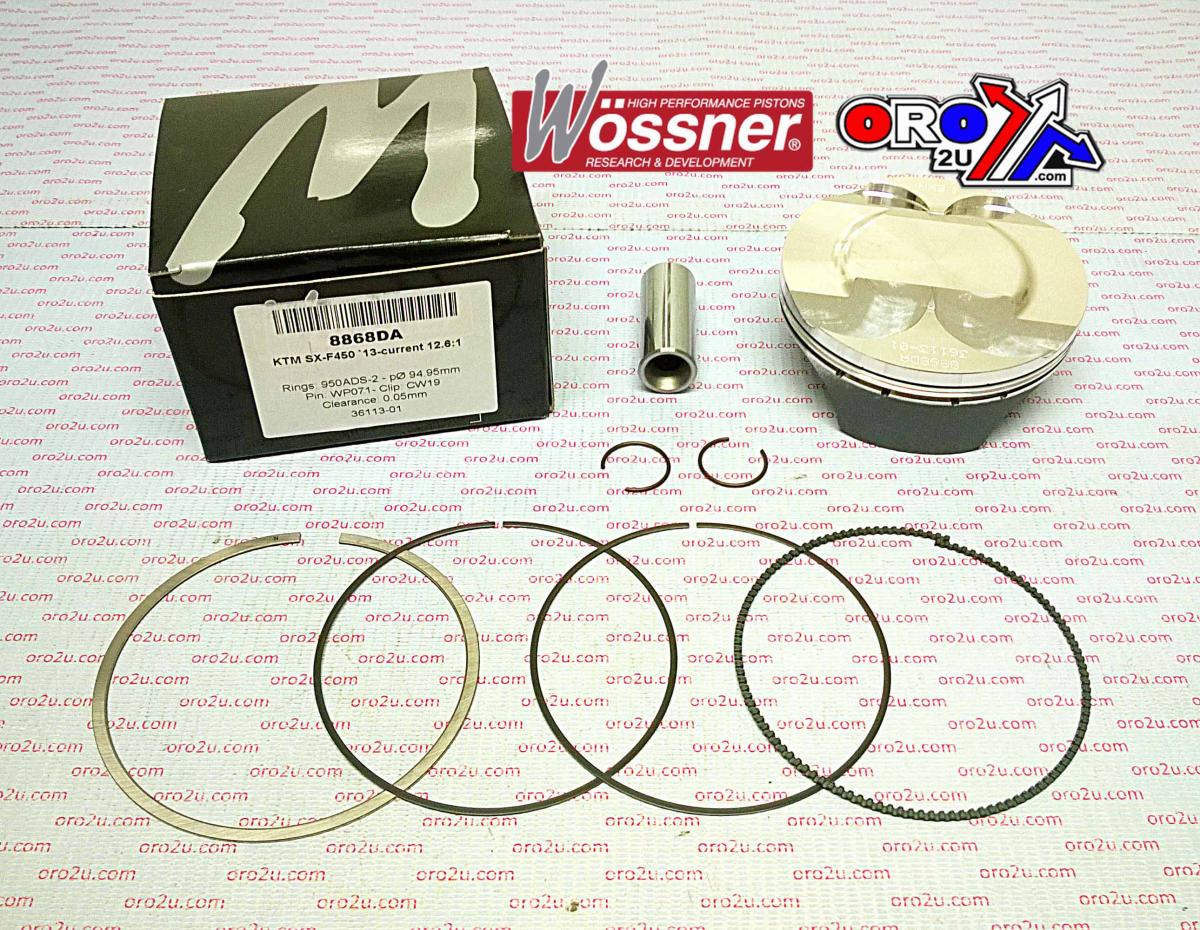

PISTON KIT 13-14 SXF450 95mm WOSSNER 8868DC KTM

Piston kit 95.02mm BORE 94.97 Wossner 8868DB (+0.02mm)

KTM
SX-F450 2013 - 2018,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W956.C.WO WOSSNER PISTON KIT KTM SX-F450 2013-18

Display (cm3) 449
Hub stroke (mm) 60.80
Clearance (mm) 0.05
Wossner compression Ratio: OEM
OEM Compression ratio: 12.60:1
Dome volume (cm3) +1.00
Compression height (mm) 22.80
Theorectical weight (G)

�
