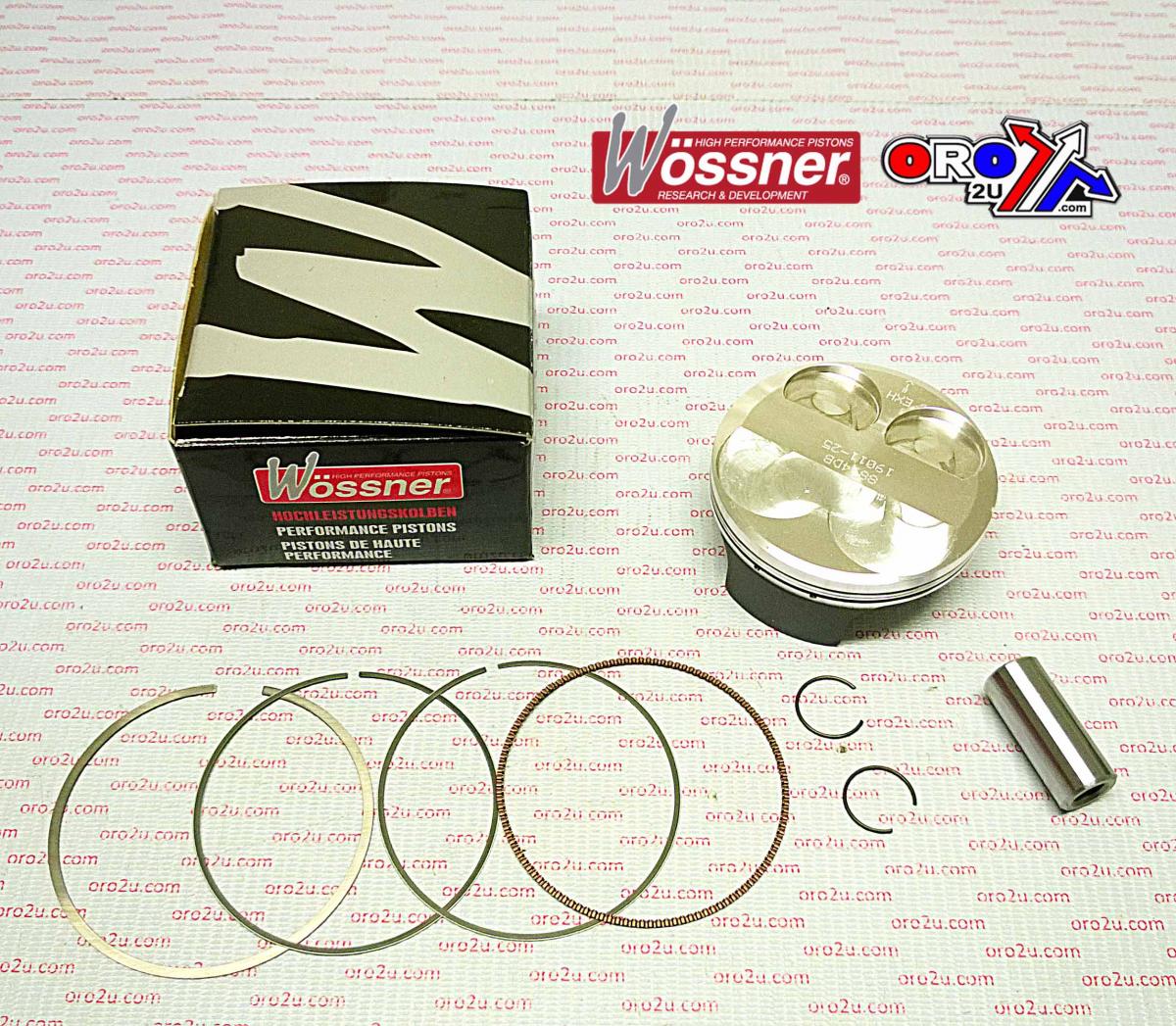

PISTON KIT 10-13 KX250F 77mm C 8814DC WOSSNER KAWASAKI

Piston kit 77.02mm BORE 76.98 Wossner 8814DC (+0.02mm)

KAWASAKI
kx250F 2011 - 2014,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W952.C.WO (oro2u.com) Wossner Piston Kawasaki KX250F 77.02 mm Bore (PN# 8814DC)
Lock P/N CW16
Pin P/N WP070
Ring Set P/N 770XAS-2

Display (cm3) 249
Hub stroke (mm) 53.60
Clearance (mm) 0.04
Wossner compression Ratio: OEM
OEM Compression ratio: 13.50:1
Dome volume (cm3) -2.8.0
Compression height (mm) 19.60
Theorectical weight (G)
