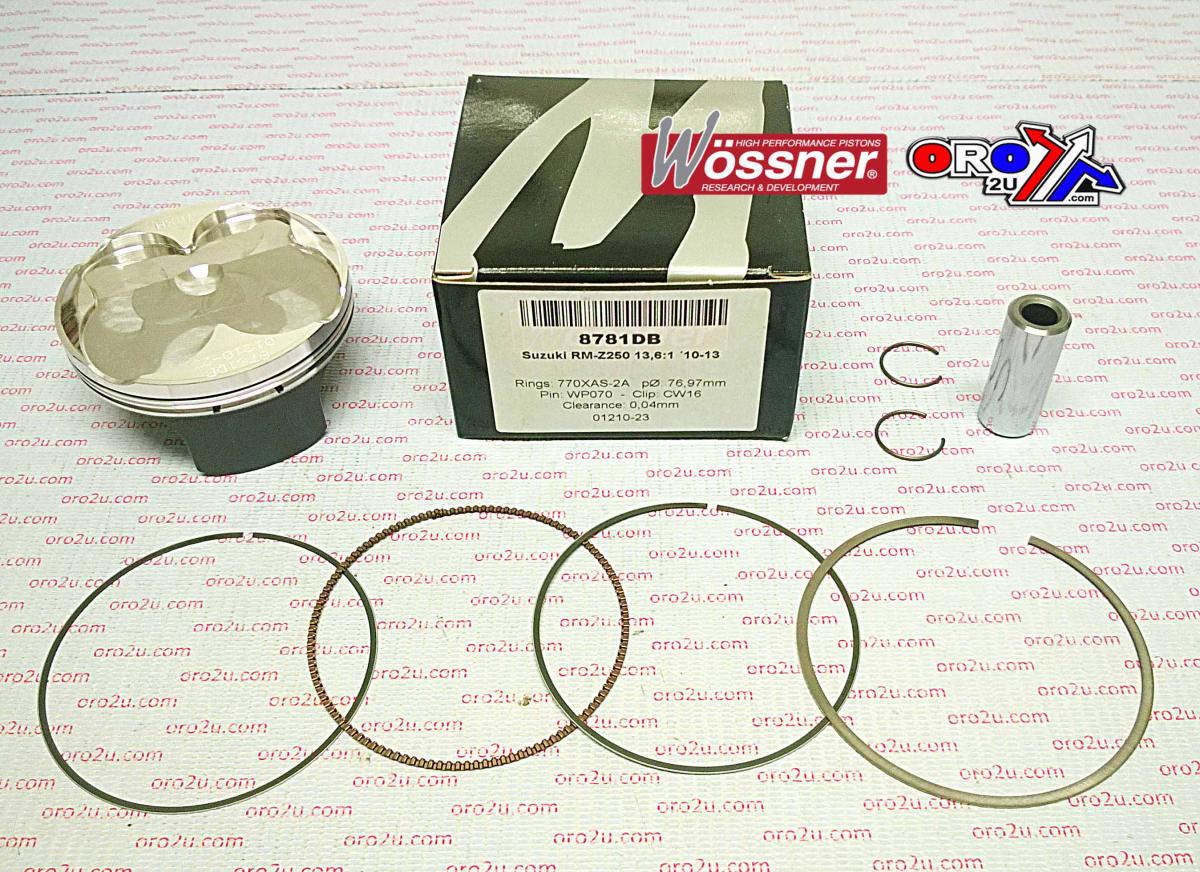

WOSSNER 77mm PISTON KIT C, SUZUKI RM-Z250 2010-2025

Piston kit 77.02mm BORE 76.98 Wossner 8781DC (+0.02MM)

SUZUKI
RX-Z250 2010 - 2022,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W951.C.WO Wossner Piston Suzuki RM-Z250 77.02 mm Bore (PN# 8781DC)
Lock P/N CW16
Pin P/N WP070
Ring Set P/N 770XAS-S
RM-Z250 2010-14

Display (cm3) 249
Hub stroke (mm) 53.80
Clearance (mm) 0.04
Wossner compression Ratio: 14.20:1
OEM Compression ratio: 13.20:1
Dome volume (cm3) +0.10
Compression height (mm) 29.00
Theorectical weight (G) 19.50
