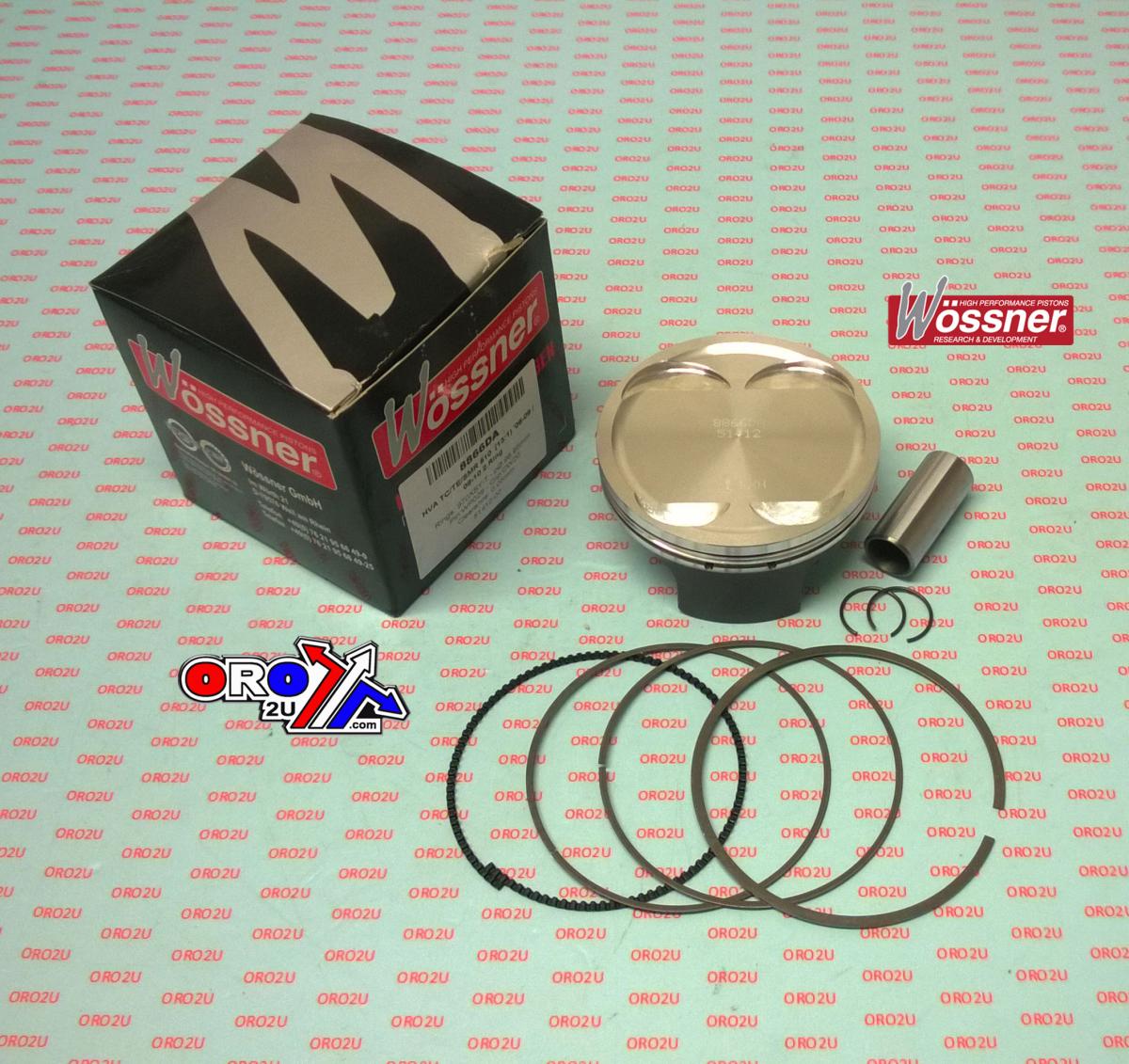

WOSSNER 97mm PISTON KIT A, HUSQVARNA TC510 06-09, TE510 08-10, SMR 510 08-10

Piston kit 97mm BORE 96.95 Wossner 8866DA (STD)

HUSQVARNA
TC510 2006 - 2009,
TE510 2008 - 2010,
SMR510 2008 - 2010,

(2 Rings)

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

PART NO. 56-W152.WO.A (ORO2U.COM) Wossner Piston Husqvarna TC510 97mm Bore (PN# 8866DA)
TC510 06-09 TE510 08-10 SMR510 08-10
RINGS 970XSY
C-CLIPS CW20
PIN WP029

Display (cm3) 501
Hub stroke (mm) 67.80
Clearance (mm) 0.05
Wossner compression Ratio: 13.00:1
OEM Compression ratio: 12.90:1
Dome volume (cm3) -9.20
Compression height (mm) 24.80
Theorectical weight (G)

�
