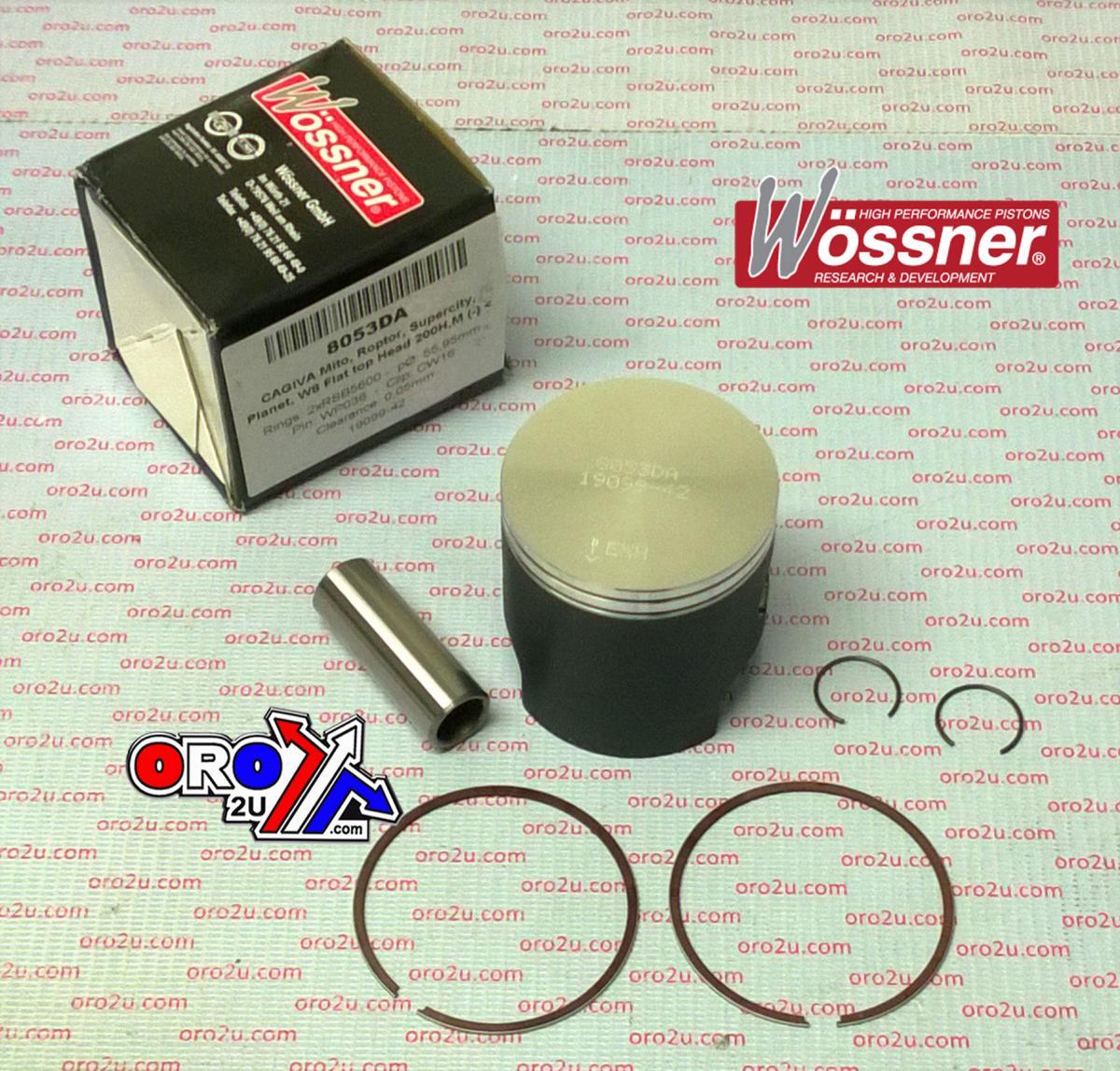

WOSSNER 57mm PISTON KIT CAGIVA MITO 125 1993-1998

Piston kit 57.00mm Bore 56.95 WOSSNER 8053D100 (+1mm)

CAGIVA
125 Mito/ Raptor / Supercity / Planet / W8 / Head 200H,M � 2000-2012, � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W940+100.WO (oro2u.com)
Lock P/N CW16
Pin P/N WP036
Ring Set P/N 2 x RSB5700

Display (cm3) 124
Hub stroke (mm) 50.60
Clearance (mm) 0.05
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3) Flat
Compression height (mm) 25.00
Theorectical weight (G)
