WOSSNER 40mm PISTON KIT YAMAHA PW50 1981-2024

Piston kit 40mm BORE 39.95 Wossner 8267DA (STD)

YAMAHA
PW50 1981 - 2019 ,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

PART NO. 56-W938+000_WO (ORO2U.COM) YAMAHA PW50 1981 - 2019,

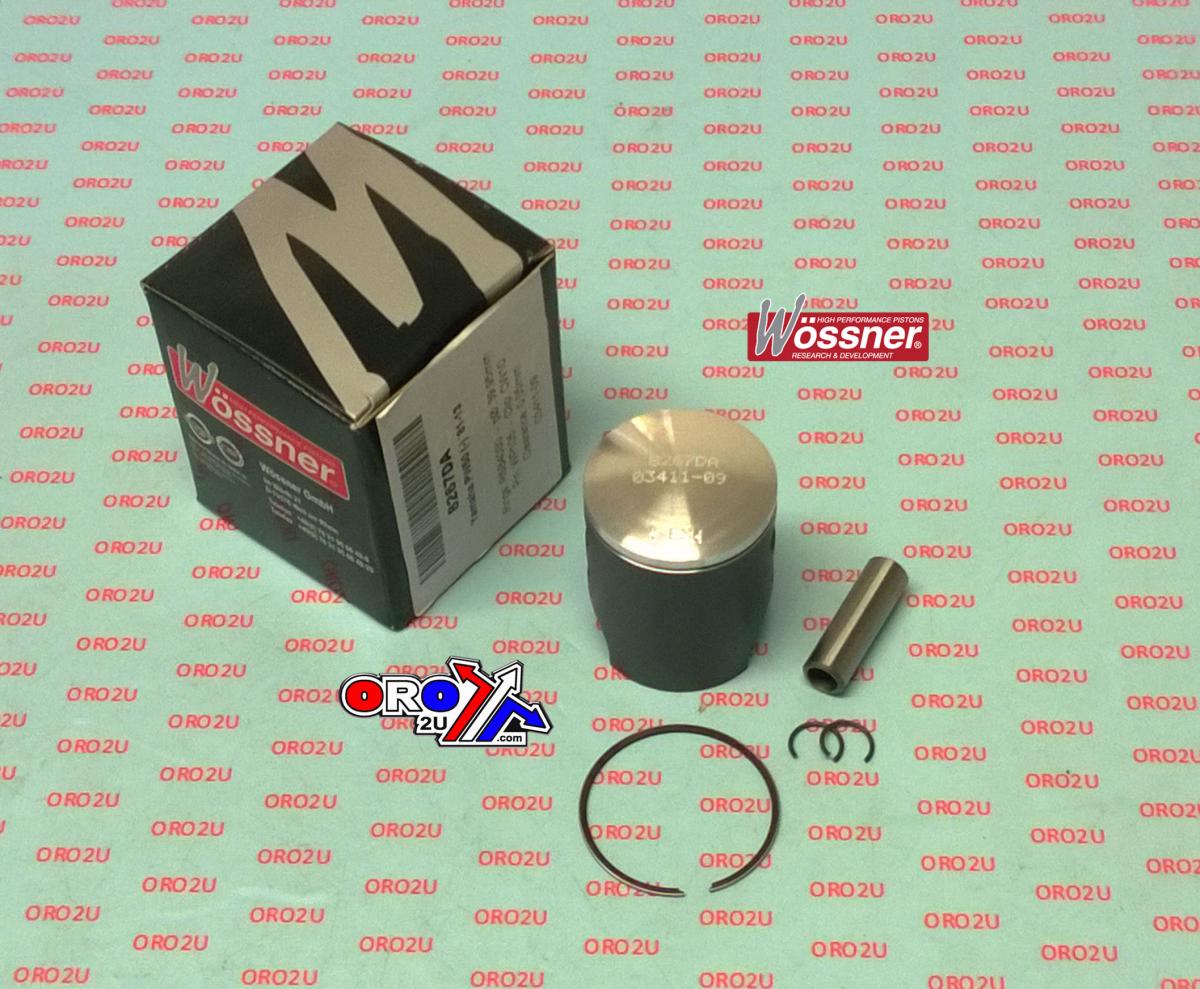

WOSSNER PISTON KIT
WOSSNER # 8267DA
Circlip P/N CW10
Pin P/N WP105
Ring Set P/N RSB4000

Hub stroke (mm) 39.20
Clearance (mm) 0.05
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3) -
Compression height (mm) 24.90
Theorectical weight (G)

Cross reference numbers ONLY.
18M-11631-00-A0, � 653M04000

�
