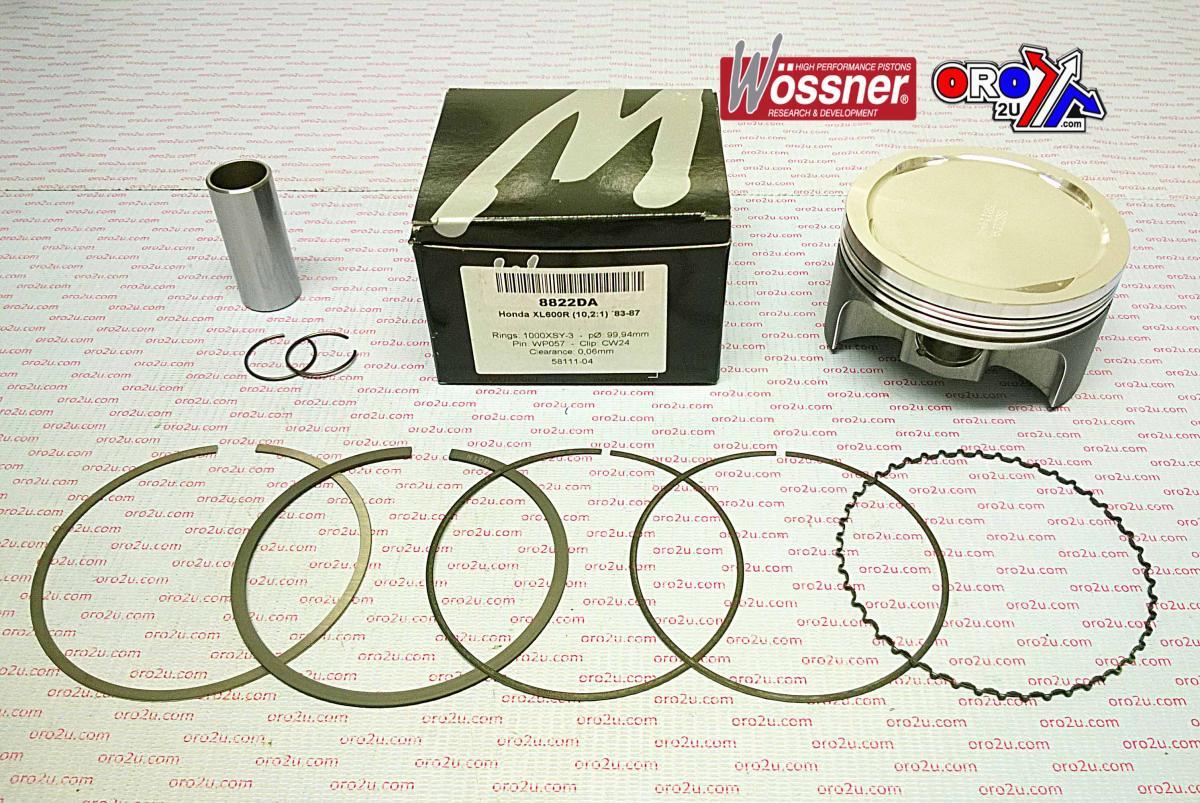

WOSSNER 101mm PISTON HONDA XL600R 1983-1987

Piston kit 101.00mm BORE 100.94 Wossner �8822D100 (+1MM)

HONDA
XL600R 1983 - 1987 ,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W926_100.WO (oro2u.com)Wossner Piston HONDA XL600R 83-87 (8822D100)
Circlip P/N CW24
Pin P/N WP057
Ring Set P/N 1010XSY
Size. 101mm

Display (cm3) 589
Hub stroke (mm) 75.00
Clearance (mm) 0.06
Wossner compression Ratio: 10.20:1
OEM Compression ratio: 9.00:1
Dome volume (cm3) -5.90
Compression height (mm) 32.80
Theorectical weight (G)

�
