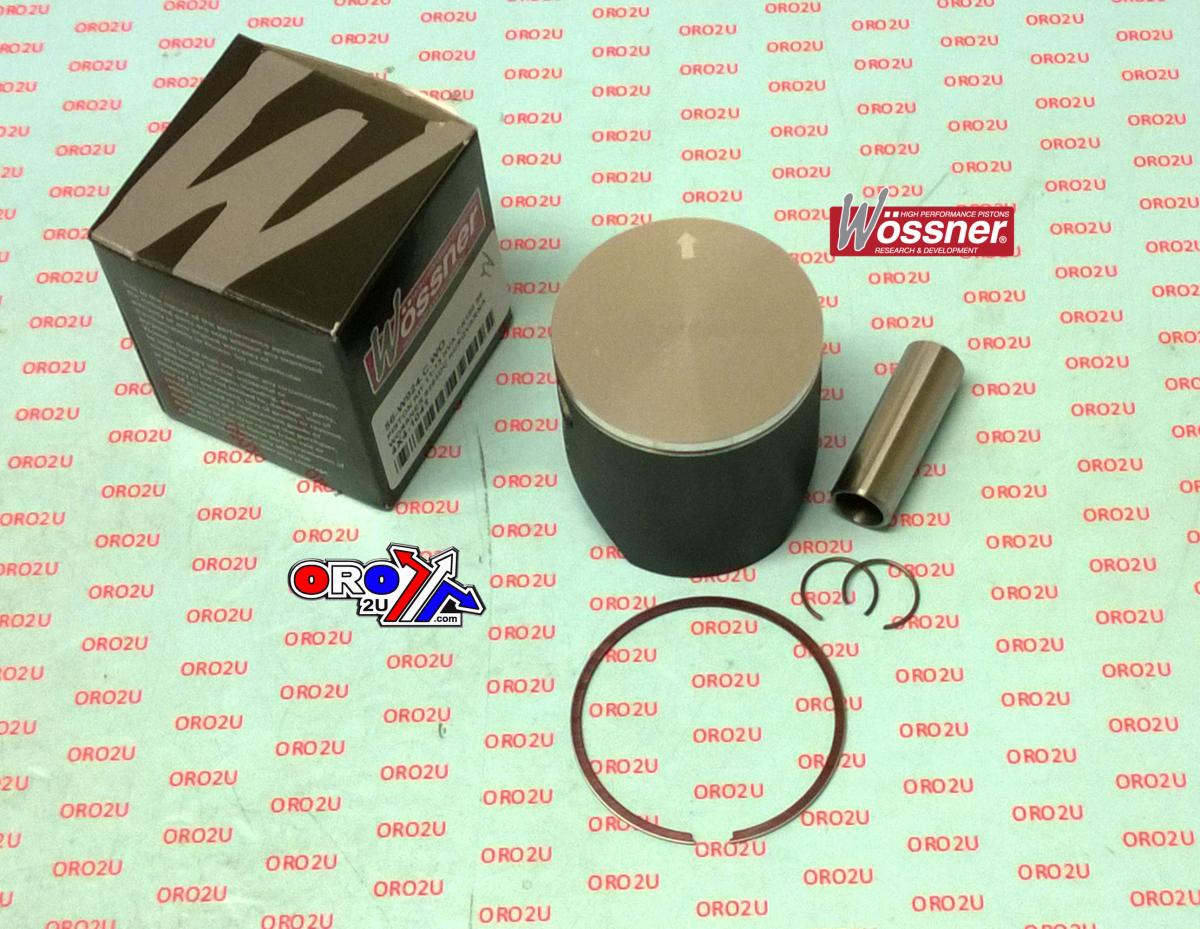

WOSSNER 58mm PISTON KIT A, HUSQVARNA CR150 2011-2013

Piston kit 58mm BORE 57.94 Wossner �8283DA (STD)

HUSQVARNA
CR150 2011 - 2013,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W924.A.WO (oro2u.com) Wossner Piston HUSKY CR150 2011-2013 (8283DA)
Circlip P/N CW15
Pin P/N WP032
Ring Set P/N RSB5800
Size. 57.94mm

Display (cm3) 144
Hub stroke (mm) 54.50
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3) -
Compression height (mm) 28.00
Theorectical weight (G)

Cross reference numbers ONLY.
800099749/1,
