WOSSNER 95mm PISTON KIT C, HUSABERG FE390 2010-2013

Piston kit 95.02mm BORE 94.97 Wossner �8824DC (+0.02mm)

HUSABERG
FE390 2010 - 2012, (Fuel injection)

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W918.C.WO (oro2u.com)

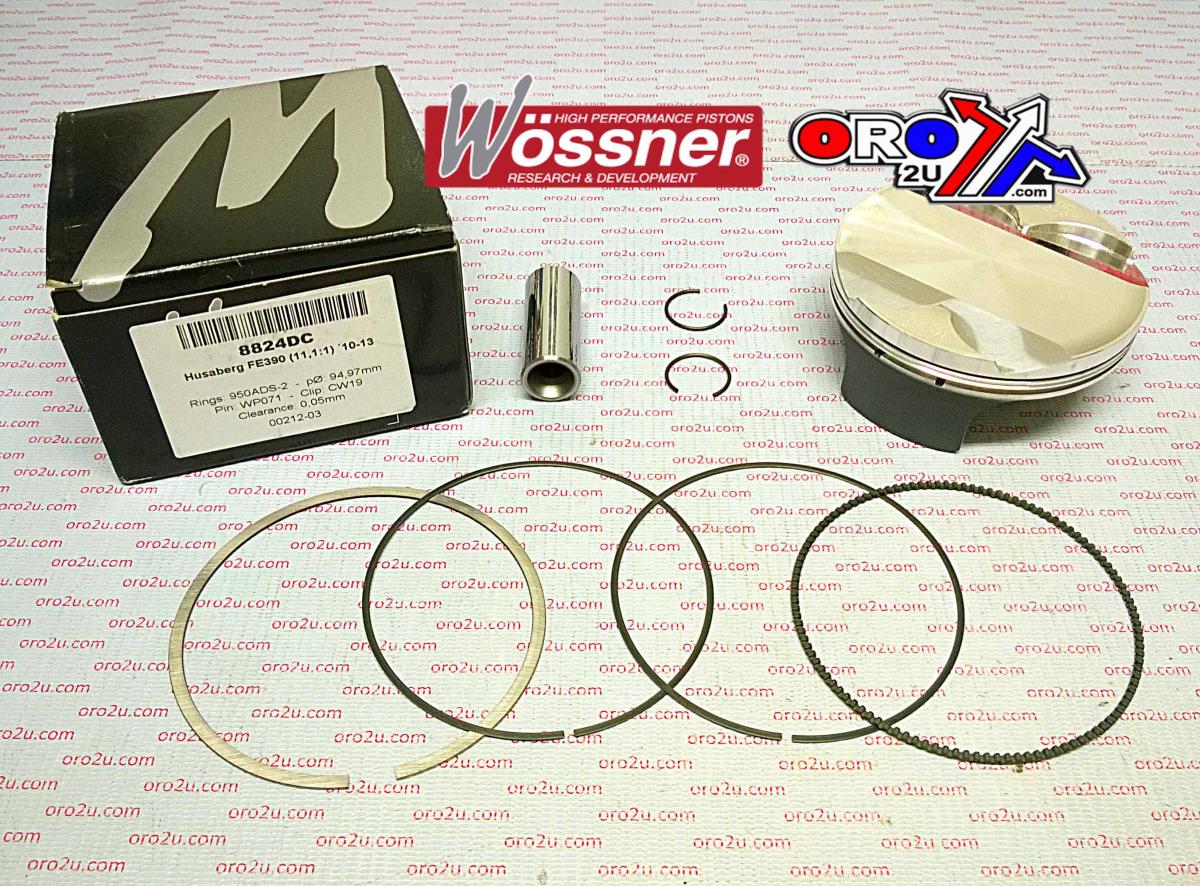

WOSSNER 8824DC PISTON KIT 95.02mm C BORE
HUSABERG 2010-2013,
Clips P/N CW19
Pin P/N WP071
Ring Set P/N 950ADS-2

Display (cm3) 398
Hub stroke (mm) 55.50
Clearance (mm) 0.05
Wossner compression Ratio: OEM
OEM Compression ratio: 11.10:1
Dome volume (cm3) -1.10
Compression height (mm) 23.20
Theorectical weight (G)
