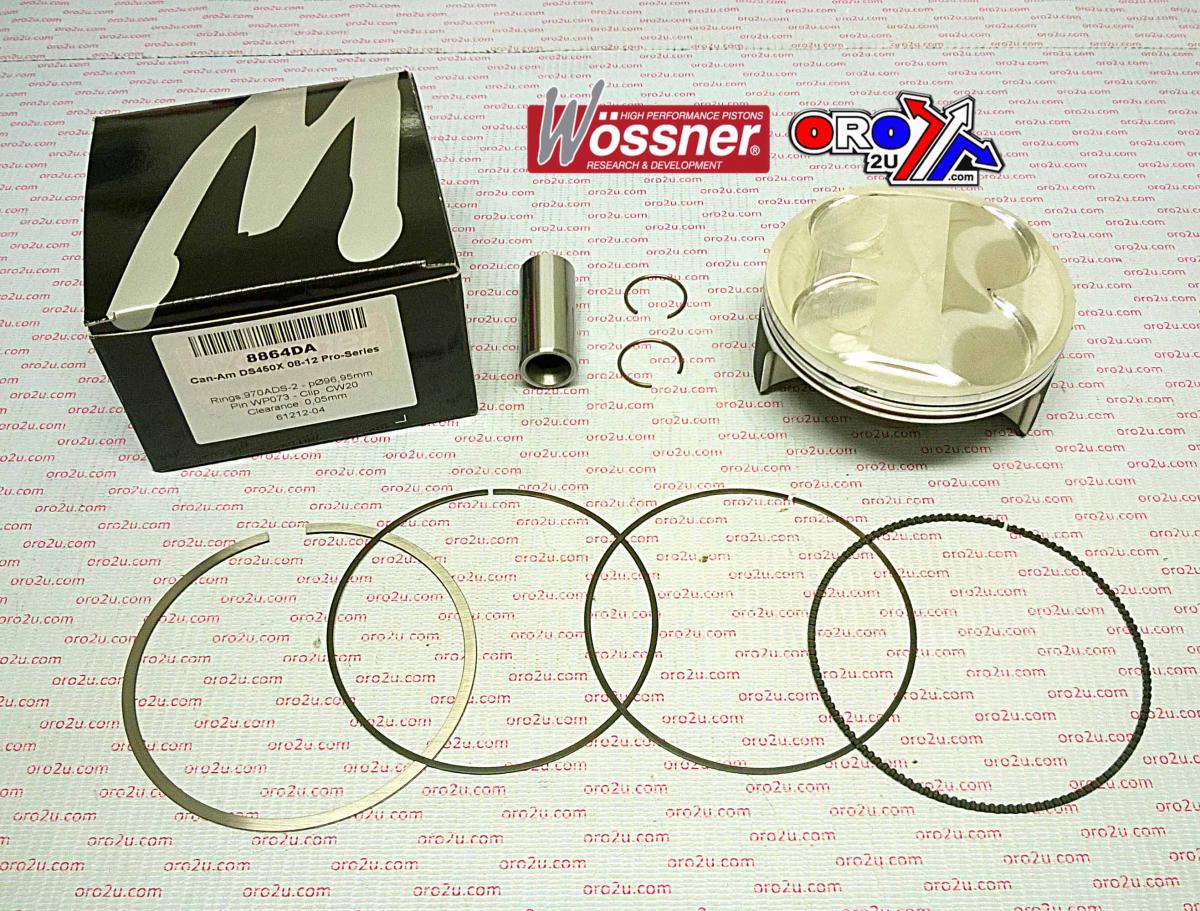

WOSSNER 97mm PISTON KIT A, CAN-AM DS450 2008-2012

Piston kit 97mm BORE 96.95mm Wossner 8864DA (HC)
PRO SERIES

CAN-AM
DS450 2008 - 2012,
DS450X 2008 - 2012,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W910.A.WO (oro2u.com)
CAN-AM DS450 / DS450X 2008 - 2012,
WOSSNER 8864DA PISTON KIT SIZE 97.00mm, Comp Ratio 13.5:1
PISTON PARTS.
CLIPS - CW20,
PIN - WP073,
RINGS - 970AD-S

Display (cm3) 449
Hub stroke (mm) 60.80
Clearance (mm) 0.05
Wossner compression Ratio: 12.5:1
OEM Compression ratio: 11.8:1
Dome volume (cm3) -0.50
Compression height (mm) 26.80
Theorectical weight (G)

Cross reference numbers ONLY.
420685132, 40027M09700, 8943DA

�
