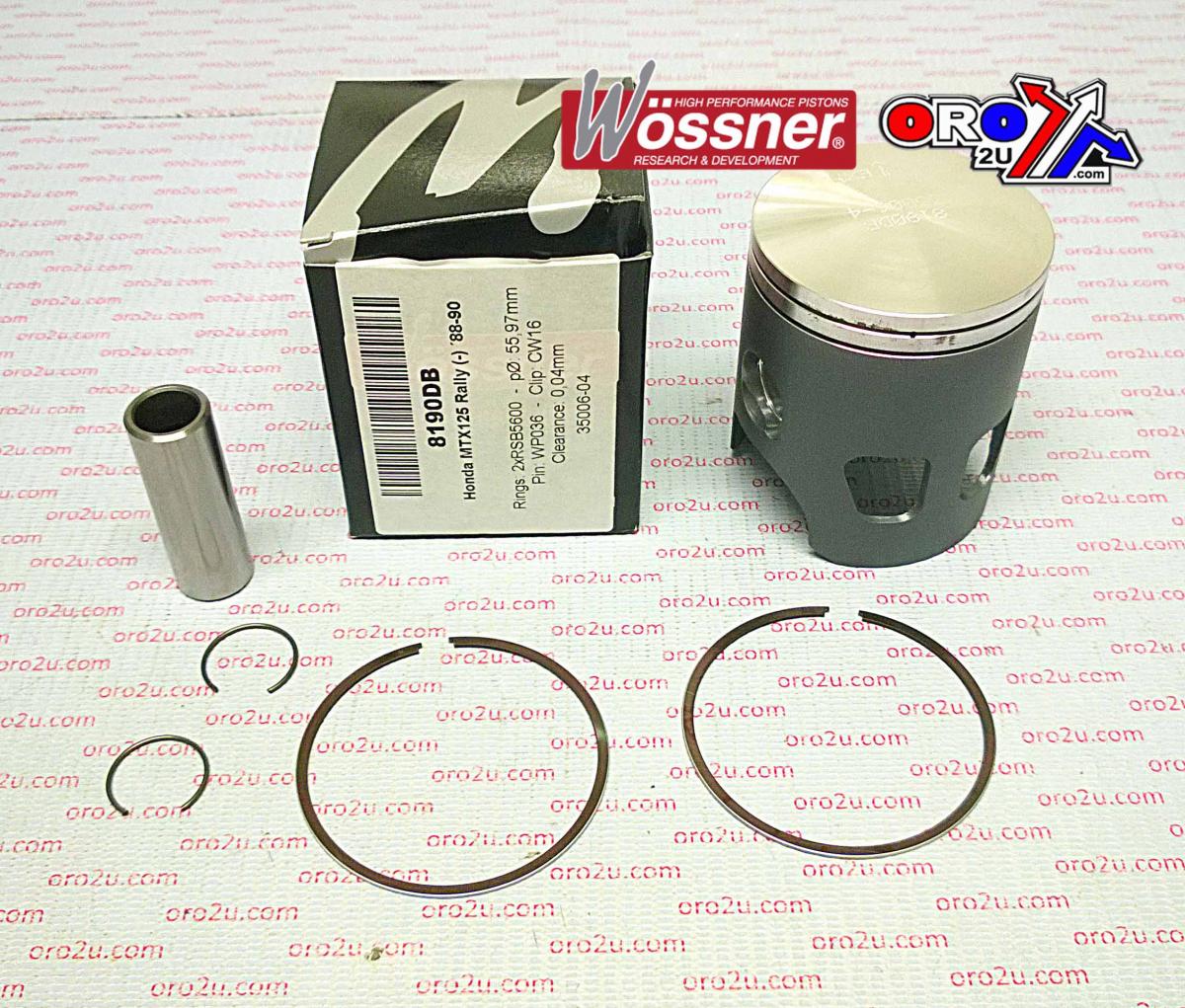

WOSSNER 56mm PISTON KIT A, HONDA MTX125 1988-1990

Piston kit 56mm BORE 55.96 Wossner 8190DA (STD)

HONDA
MTX 125 RALLY 1988 - 1990,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W905.B (oro2u.com) Wossner Piston Honda MTX125 56 mm B Bore 8190DB
Lock P/N CW16
Pin P/N WP036
Ring Set P/N RSB5600 x 2

Display (cm3) 124
Hub stroke (mm) 50.60
Clearance (mm) 0.04
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3) -
Compression height (mm) 30.60
Theorectical weight (G)

�
