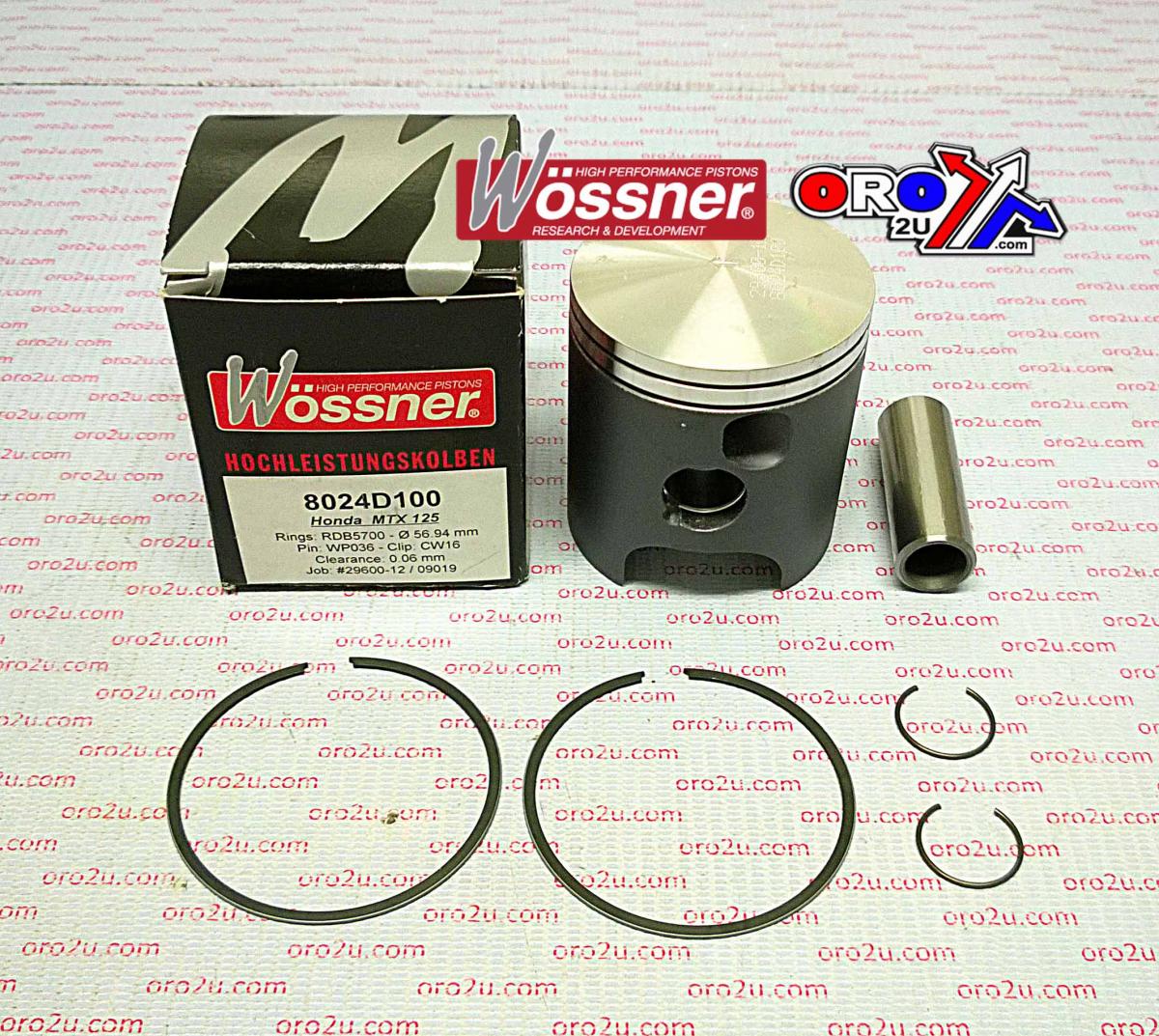

WOSSNER 57mm PISTON KIT HONDA MTX125 1983-1987, MBX125 1983-1987

Piston kit 57mm BORE 56.94 Wossner 8024D100 (+1.00mm)

HONDA
MBX125 1983 - 1987,
MTX125 1983 - 1987,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W903+100.WO (oro2u.com) Wossner Piston Honda MBX125 57 mm Bore (PN# 8024D100)
Lock P/N CW16
Pin P/N WP036
Ring Set P/N RSB5700 x 2

Display (cm3) 124
Hub stroke (mm) 50.60
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3) -
Compression height (mm) 30.40
Theorectical weight (G)

- 1983 Honda MBX 125 - 1983 Honda MTX 125 - 1984 Honda MBX 125 - 1984 Honda MTX 125 - 1985 Honda MBX 125 - 1985 Honda MTX 125 - 1986 Honda MBX 125 - 1986 Honda MTX 125

- 1987 Honda MBX 125 - 1987 Honda MTX 125
