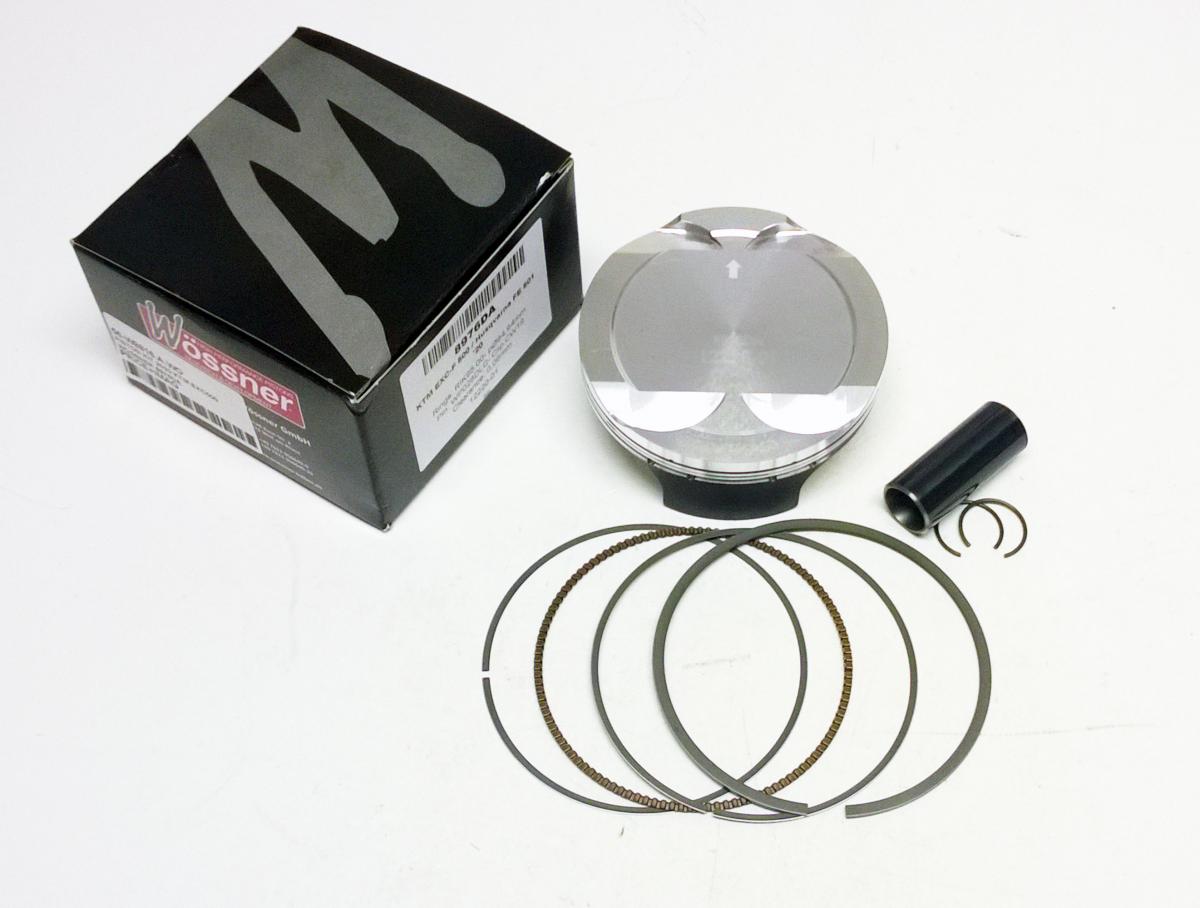

WOSSNER 95mm PISTON KIT C, KTM EXC-F 500, HUSQVARNA FE501, GAS GAS EC500 20-24

Piston kit 95mm BORE 94.96 Wossner  8976DC

WILL NOT FIT 2024/2025 MODELS SEE: Wossner 4100

KTM
EXC500 2020-2023

HUSQVARNA
FE501 2020-2023

GASGAS
ECF 500 2020-2023

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W628.C.WO
Circlip P/N CW16
Pin P/N WP028DLC
Ring Set P/N RIK95.00


Dome volume (cm3) -5,69
Compression height (mm) 22.80
Theorectical weight (G) 227.80G
