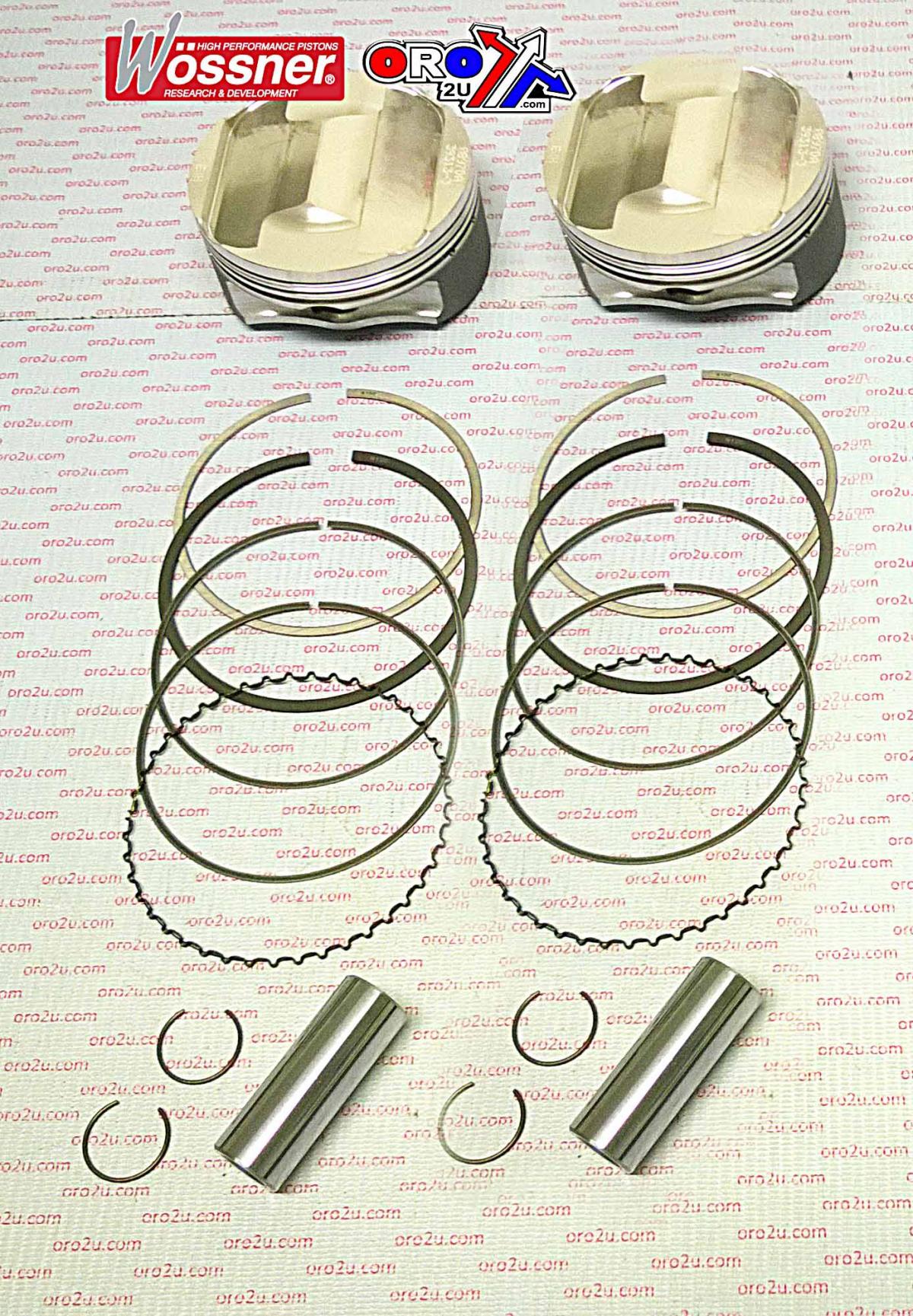

WOSSNER 93mm PISTON KIT A, POLARIS RZR XP900 2011-2014

Piston Kit 93.00mm Bore Wossner K8897DA-2 (STD)

POLARIS
RZR XP900 2011-2014,
RZR XP4900 4x4 2012-2014,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W8801.A.WO-2 (oro2u.com)
Lock P/N CW20
Pin P/N WP065

Cross reference numbers ONLY.
2204637, 40045M09300

Wossner K8897DA-2 Piston KIT SET/2 A Bore 93.00mm.
Wossner are forged and have been developed for the racer

seeking strength and reliability, and the everyday trail rider who is looking for increased longevity over a cast- type piston.
Cross reference numbers ONLY.

Piston to Bore Clearance: Wossner pistons already have the recommended clearance built in. Skirt diameter is smaller than the recommended bore size (see sizing on box). Some applications: Nitrous, supercharged, turbo, and cold water marine engines may need more than the recommended clearance.
Pistons are measured 90 degrees from the piston pin axis of
