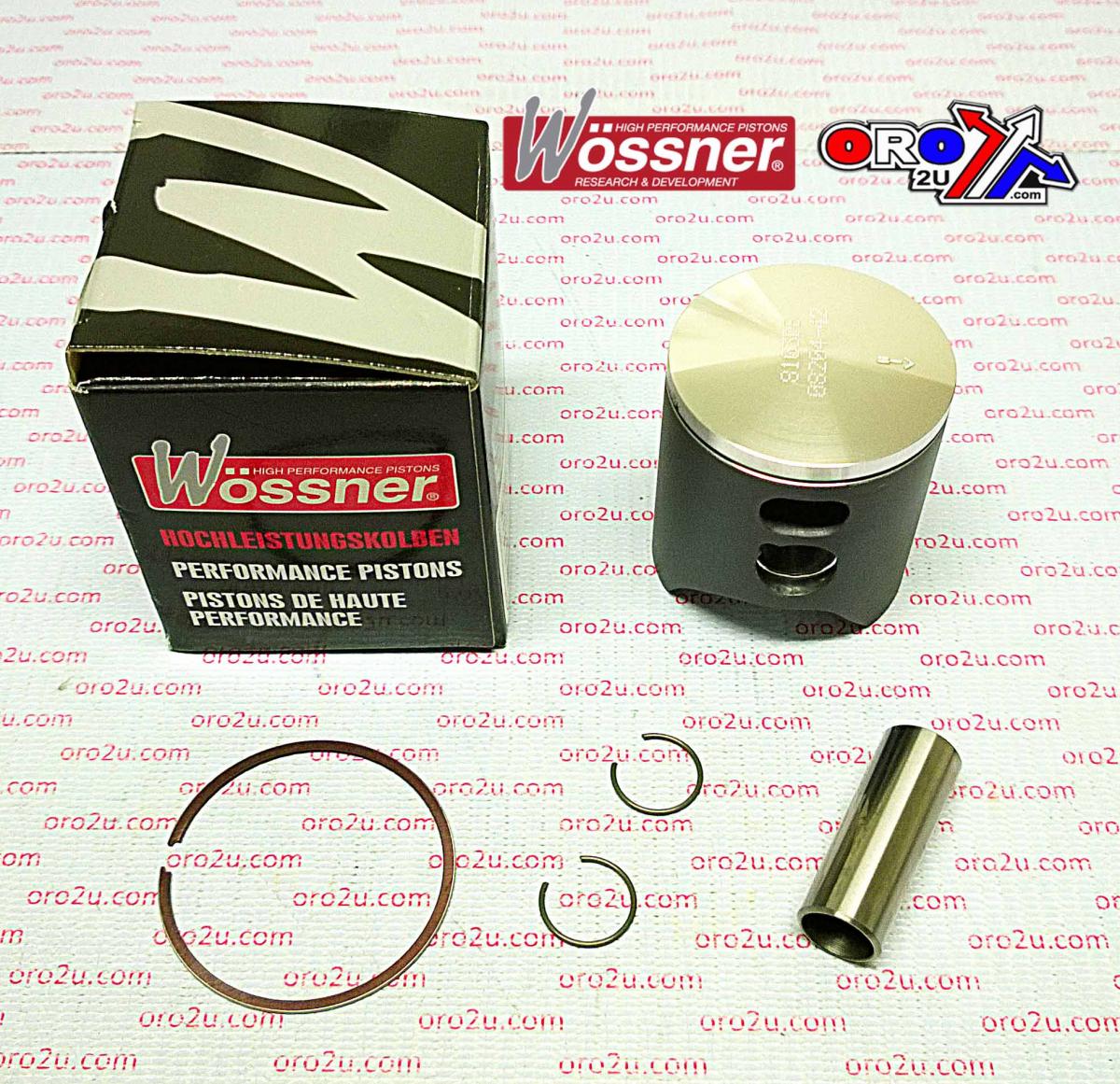

PISTON KIT 02-14 RM85 48.00 A WOSSNER 8103DA SUZUKI MX

Piston Kit 48.00mm Bore 47.95 Wossner 8103DA (STD)

Suzuki
RM85 2002-2018, �

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W806.A.WO (oro2u.com)
Lock P/N CW14
Pin P/N WP058
Ring Set P/N RSB4800
Rod P/N P2007

Display (cm3) 84
Hub stroke (mm) 46.80
Clearance (mm) 0.05
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 27.00
Theorectical weight (G)

Cross reference numbers ONLY.
12110-03B20-0F0, 09104829 � � � , 806M04800
