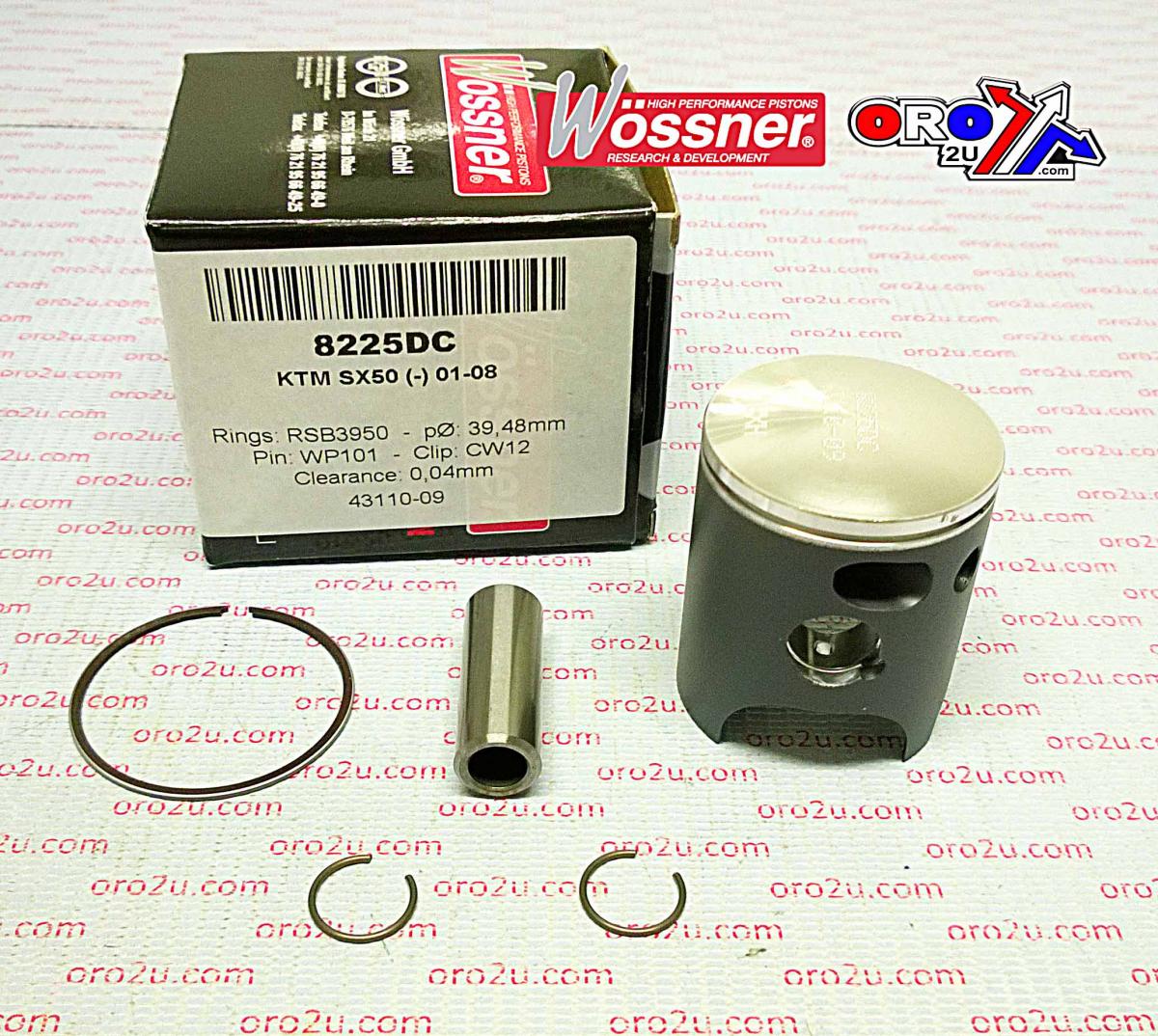

WOSSNER 39.5mm FORGED PISTON KIT C, KTM SX50 2002-2008

Piston Kit 39.52mm Bore 39.47 Wossner 8225DC (+0.02mm)

KTM
SX50 2001 - 2008,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W803.C.WO (oro2u.com)
Wossner Piston KTM SX50 39.5 mm Bore (PN# 8225DC)
Lock P/N CW12
Pin P/N WP101
Ring Set P/N RSB3950

Display (cm3) 50
Hub stroke (mm) 40.00
Clearance (mm) 0.04
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 21.60
Theorectical weight (G)

Select your car to see if this product fits:
- 2001 KTM SX 50 - 2002 KTM SX 50 - 2003 KTM SX 50 - 2004 KTM SX 50 - 2005 KTM SX 50 - 2006 KTM SX 50

- 2007 KTM SX 50 - 2008 KTM SX 50
