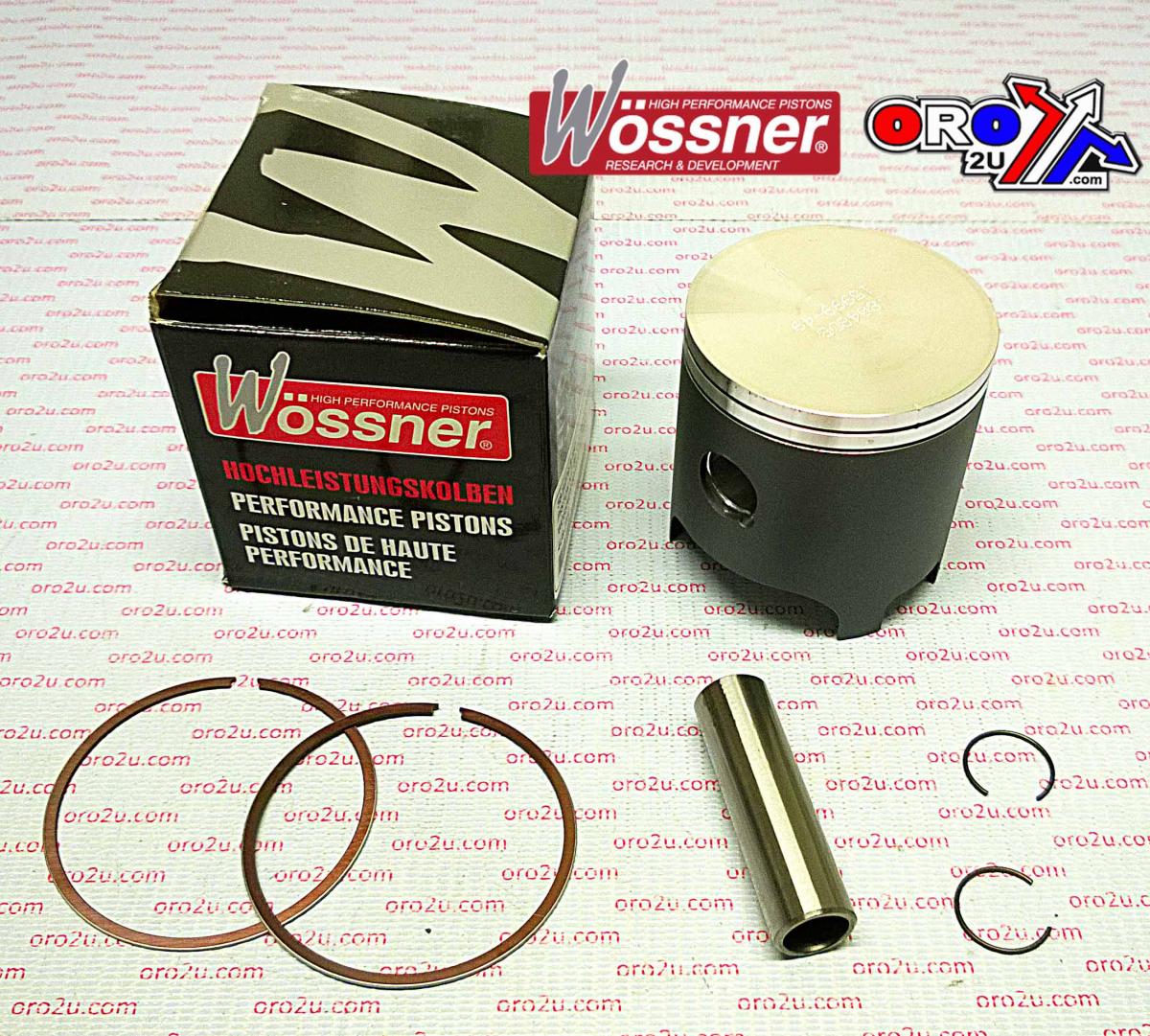

WOSSNER 64mm FORGED PISTON KIT C, KTM 200 1998-2016

Piston Kit 64.02mm Bore 63.96 WOSSNER 8048DC (+0.02MM)

KTM
SX 200 2003 - 2005,
EXC 200 1998 - 2013,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W770.C.WO
Lock P/N CW16
Pin P/N WP027
Ring Set P/N RSB6400 x 2

Display (cm3) 200
Hub stroke (mm) 60.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 28.00
Theorectical weight (G)

�
Cross reference numbers.
WOSSNER 8048DA, WISECO 770M06400, VERTEX 22926, PROX 01-6248, NAMURA NX-70021,
Piston I Cpl. 52330007400 I ,
Piston Ii Cpl. 52330007400 II ,
PIN 52330033100 ,
RING 52330032100 ,
CLIP 52330074100 ,

�
