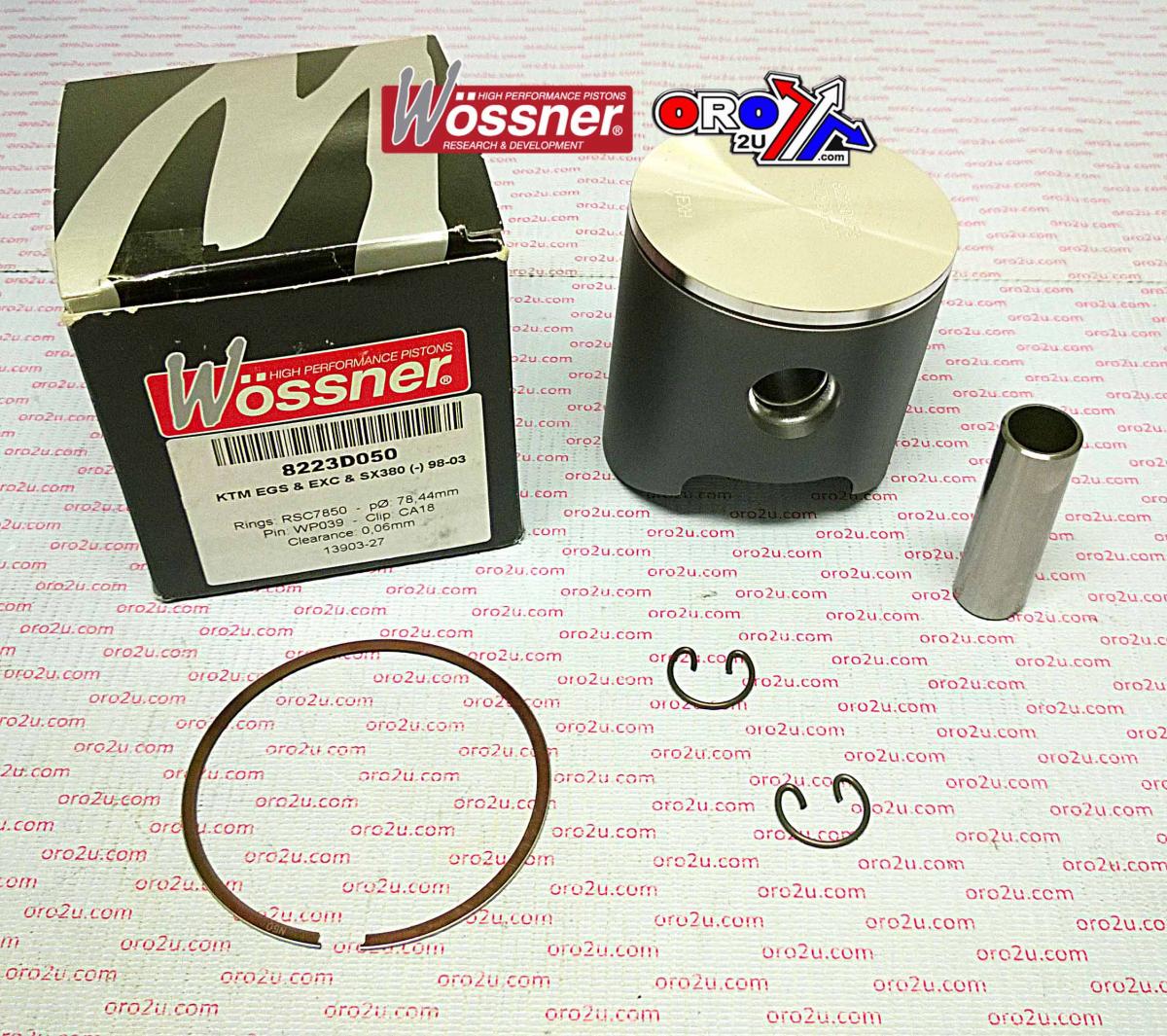

WOSSNER 78.5mm FORGED PISTON KIT KTM 380 1998-2002

Piston kit 78.50mm Bore 78.44 Wossner 8223D050 (STD)

KTM
EGS 1998-2002,
EXC 1998-2002,
SX360 1998-2002,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W748+050.WO
Wossner Piston KTM EGS380 78.50 mm Bore (PN# 8223D050)
KTM380 EGS/ECX/SX 98-02
Lock P/N CW18
Pin P/N WP039
Ring Set P/N RSC7850

Display (cm3) 368
Hub stroke (mm) 77.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 27.00
Theorectical weight (G)
