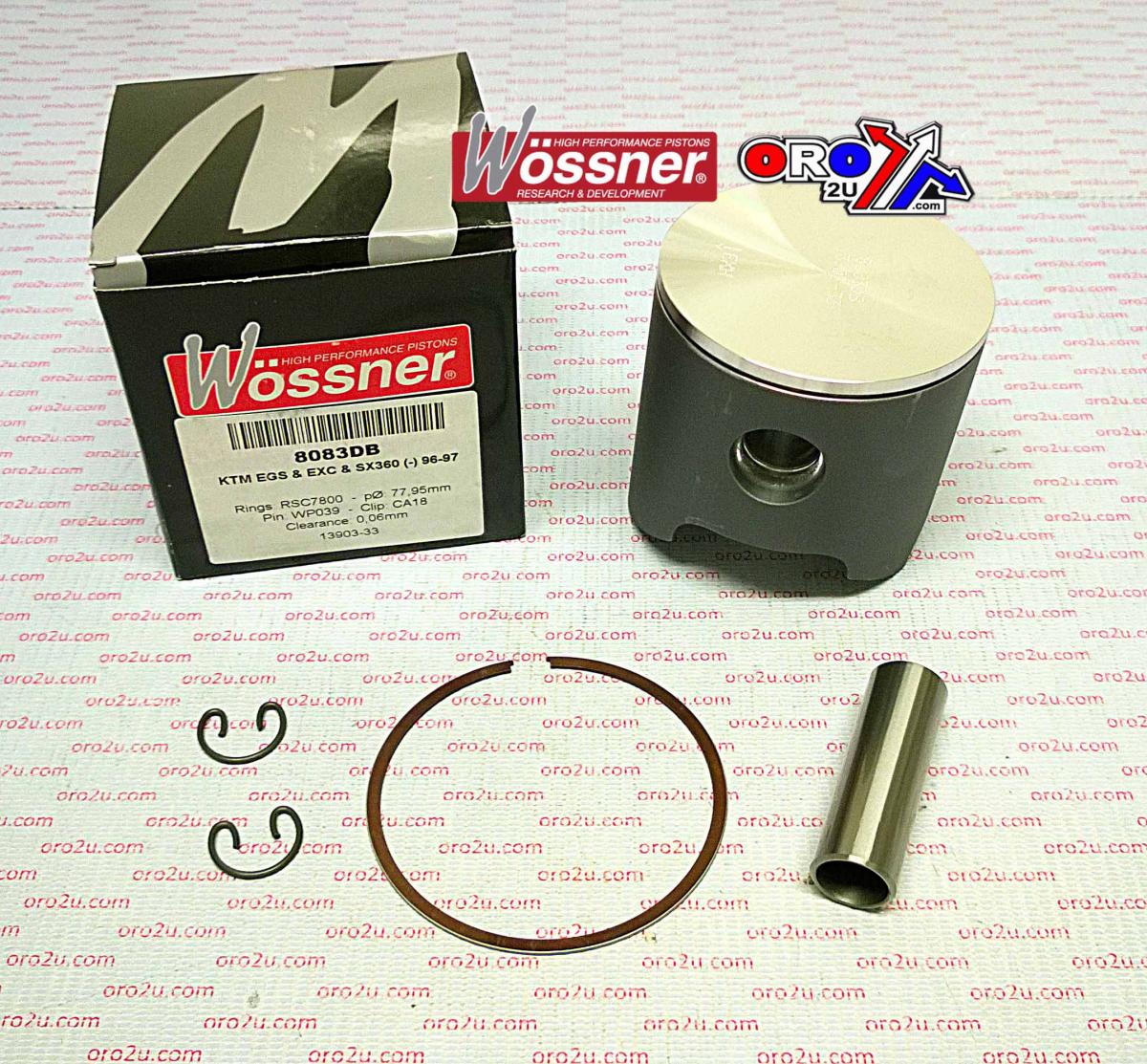

WOSSNER 79mm FORGED PISTON KIT KTM 360 1996-1997

Piston kit 79mm Bore 78.94 Wossner 8083D100 (+1.00)

KTM
EGS 1996 - 1997,
EXC 1996 - 1997,
SX360 1996 - 1997,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W747+100.WO
Wossner Piston KTM EGS360 79.00 mm Bore (PN# 8083D100)
KTM360 EGS/ECX/SX 96-97
Lock P/N CW18
Pin P/N WP039
Ring Set P/N RSC7900

Display (cm3) 353
Hub stroke (mm) 74.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 27.00
Theorectical weight (G)
