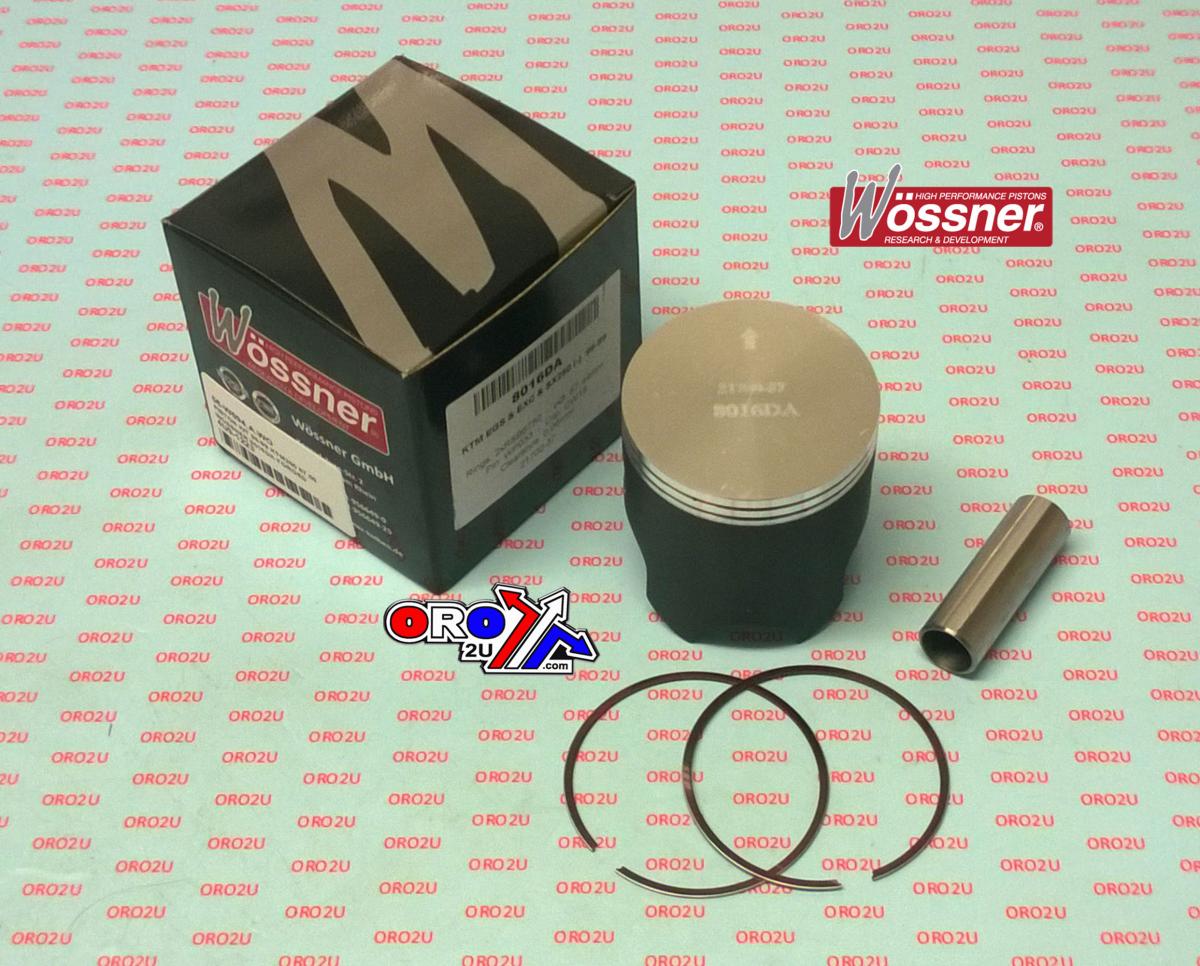

WOSSNER 67.5mm FORGED PISTON KIT A. KTM 250 2t 1996-1999

Piston kit 67.50mm Bore 67.44 Wossner 8016DA (STD)

KTM
MXC250 1996 - 1999,
EXC250 1996 - 1999,
SX250 1996 - 1999,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W694.A.WO
Wossner Piston KTM MXC/EXC/SX250 67.5 mm Bore (PN# 8016DA)
Lock P/N CW18
Pin P/N WP033
Ring Set P/N RSB6750 X 2
Rod P/N P2024

Display (cm3) 249
Hub stroke (mm) 69.50
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 26.70
Theorectical weight (G)

Select your car to see if this product fits:
- 1996 KTM 125 EGS - 1996 KTM EXC 250 - 1996 KTM SX 250 - 1997 KTM 125 EGS

- 1997 KTM EXC 250 - 1997 KTM SX 250 - 1998 KTM 125 EGS - 1998 KTM EXC 250 - 1998 KTM SX 250 - 1999 KTM 125 EGS - 1999 KTM EXC 250 - 1999 KTM SX 250
