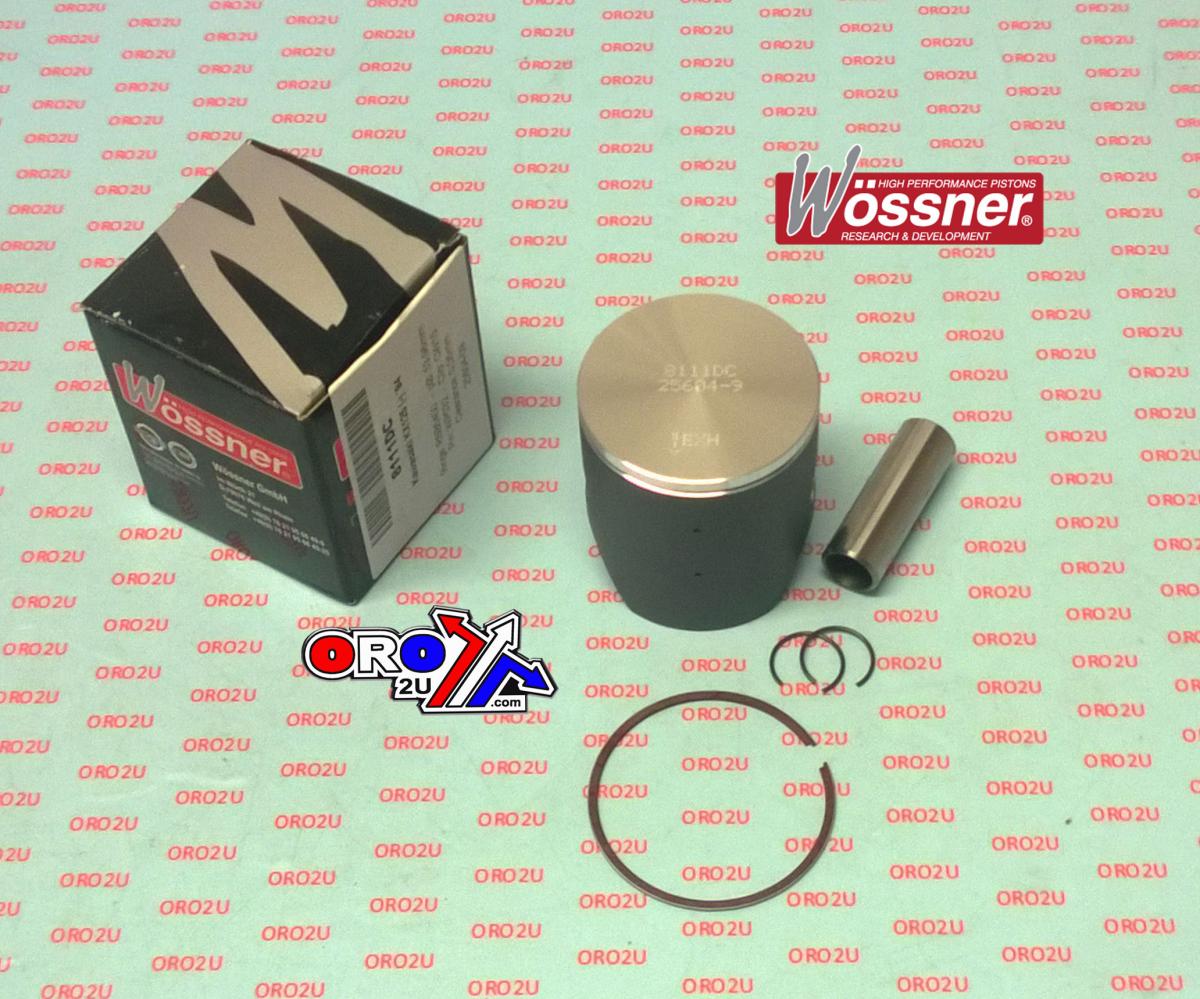

WOSSNER 55mm PISTON KIT KAWASAKI KX125 1994

KAWASAKI KX125 1994

Wossner forged pistons are superior in strength and design. Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls. Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse. Made in Germany.

• Wossner Piston Kawasaki KX125 (PN#): 8111D100
• Lock P/N: CW15
• Pin P/N: WP032
• Ring Set P/N: RSB5500
• Rod P/N: P2038

Specifications:

• Display (cm3): 125
• Hub Stroke (mm): 54.50
• Clearance (mm): 0.06
• Wossner Compression Ratio: 2 stroke
• OEM Compression Ratio: 2 stroke
• Dome Volume (cm3):
• Compression Height (mm): 29.50
• Theoretical Weight (G):
