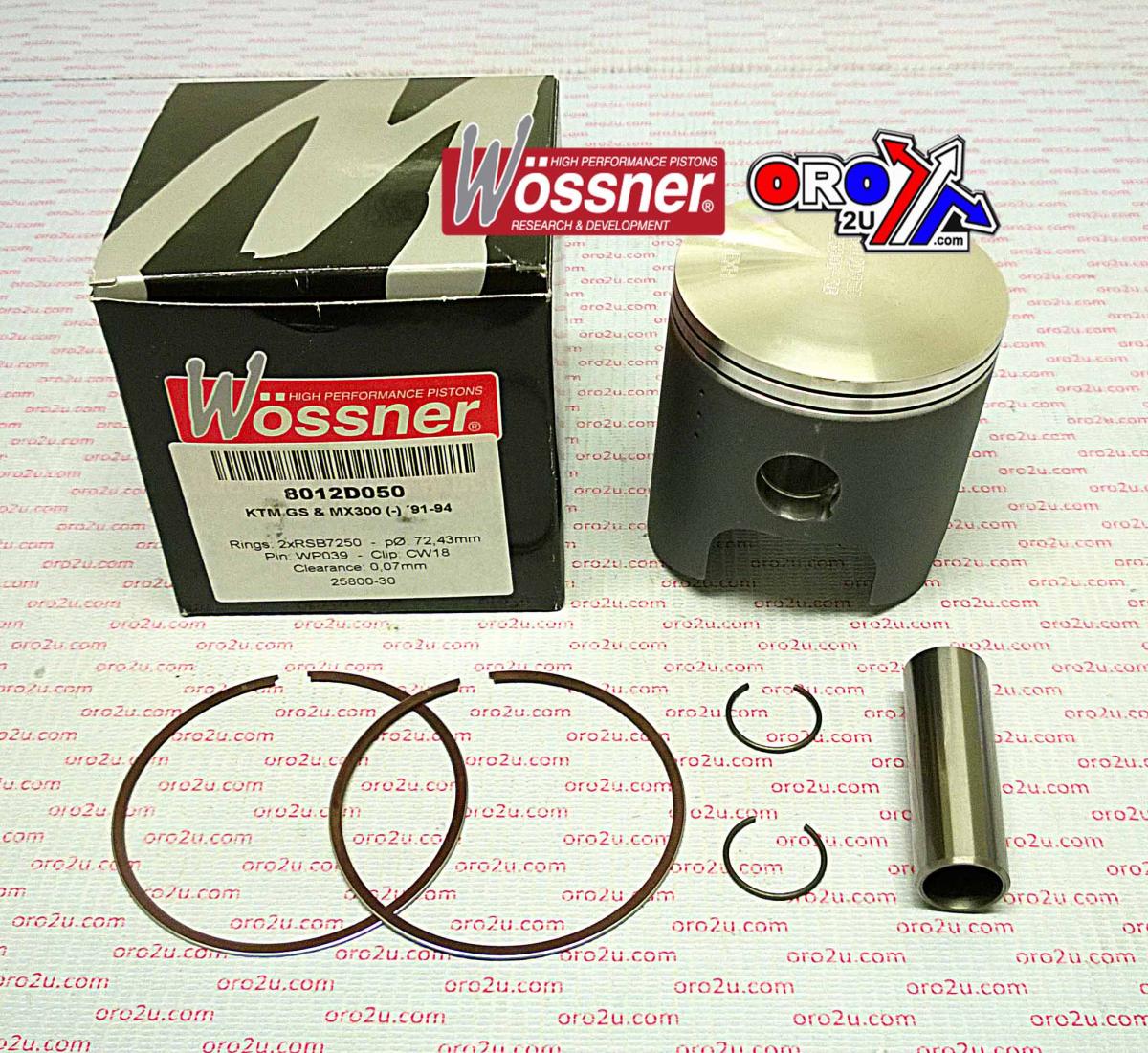

WOSSNER 72mm FORGED PISTON KIT B, KTM 300 2T 1991-1994

The Wossner 8012DA (+0.01) piston kit features a 72.01mm bore (actual 71.94mm) and is engineered for superior strength and effective heat transfer to cylinder walls. The forged, elliptically designed piston ensures a more uniform bearing surface during heat expansion, minimising localised pressure and evenly distributing thrust loads to prevent piston collapse. Manufactured in Germany, this kit includes the necessary components for a durable rebuild and is suitable for KTM 300 models from 1990 to 1994.

Features

• Forged piston construction for superior strength and longevity

• Optimised for efficient combustion chamber heat transfer

• Elliptical design provides a uniform bearing surface under heat expansion

• Minimises localised pressure and prevents piston collapse

• Made in Germany

Specifications

• Bore Size: 72.01mm (Actual 71.94mm)

• Display (cm³): 297

• Stroke (mm): 72.00

• Clearance (mm): 0.07

• Compression Ratio (Wossner 2-stroke): 2 stroke

• Compression Ratio (OEM 2-stroke): 2 stroke

• Compression Height (mm): 29.70

Cross-Reference OEM Part Numbers

• Wossner Piston Kit Part No: 8012DA (+0.01)

• Lock Part No: CW18

• Pin Part No: WP039

• Ring Set Part No: RSB7200

Vehicle Fitments

• 1990 KTM GS300

• 1990 KTM MX300

• 1990 KTM EXC300

• 1991 KTM GS300

• 1991 KTM MX300

• 1991 KTM EXC300

• 1992 KTM GS300

• 1992 KTM MX300

• 1992 KTM EXC300

• 1993 KTM GS300

• 1993 KTM MX300

• 1993 KTM EXC300

• 1994 KTM GS300

• 1994 KTM MX300

• 1994 KTM EXC300
