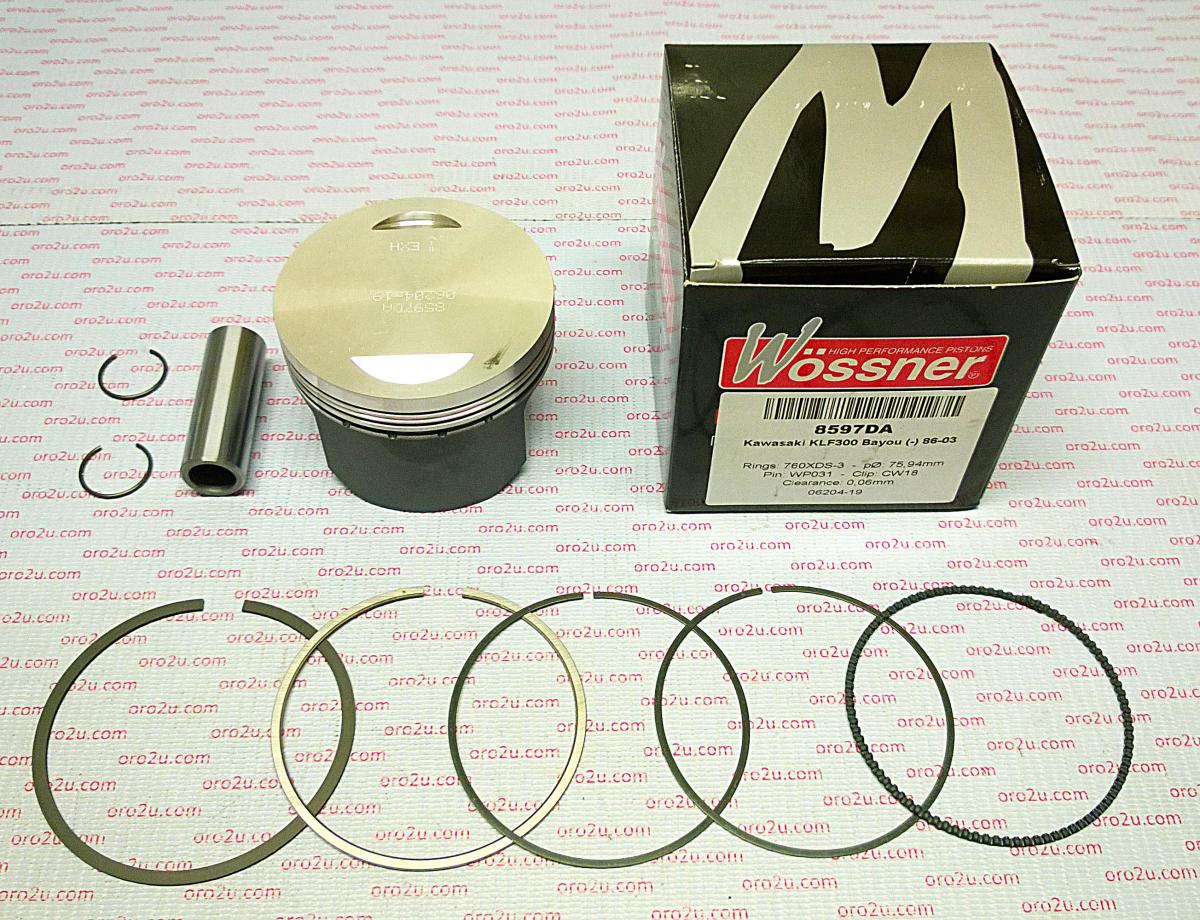

WOSSNER 76.5mm PISTON KIT KAWASAKI KLF300 86-04, KEF300 95-03, KVF300 99-03

The Wossner 76.50mm Bore Piston Kit (Part No. 8597D050) is a high-performance forged piston designed for Kawasaki KLF300 Bayou models from 1986 to 2005. Engineered for strength and durability, it optimizes heat transfer within the combustion chamber and features an elliptical design to ensure even load distribution, reducing localized pressure and preventing piston collapse. Manufactured in Germany, this piston maintains the OEM compression ratio for reliable engine performance.

Features

• High-strength forged piston construction
• Optimized heat transfer for improved combustion efficiency
• Elliptical design for even thrust load distribution
• Manufactured in Germany

Specifications

• Bore Size: 76.50mm
• Actual Bore Diameter: 76.44mm
• Compression Ratio: OEM
• OEM Compression Ratio: 8.60:1
• Displacement: 290cc
• Stroke: 68.00mm
• Clearance: 0.06mm
• Dome Volume: +0.40cm³
• Compression Height: 26.50mm

Cross-Reference OEM Part Numbers

• Lock P/N: CW18
• Pin P/N: WP031
• Ring Set P/N: 765XDS

Vehicle Fitments

• Kawasaki KLF300 Bayou (1986-2005)
