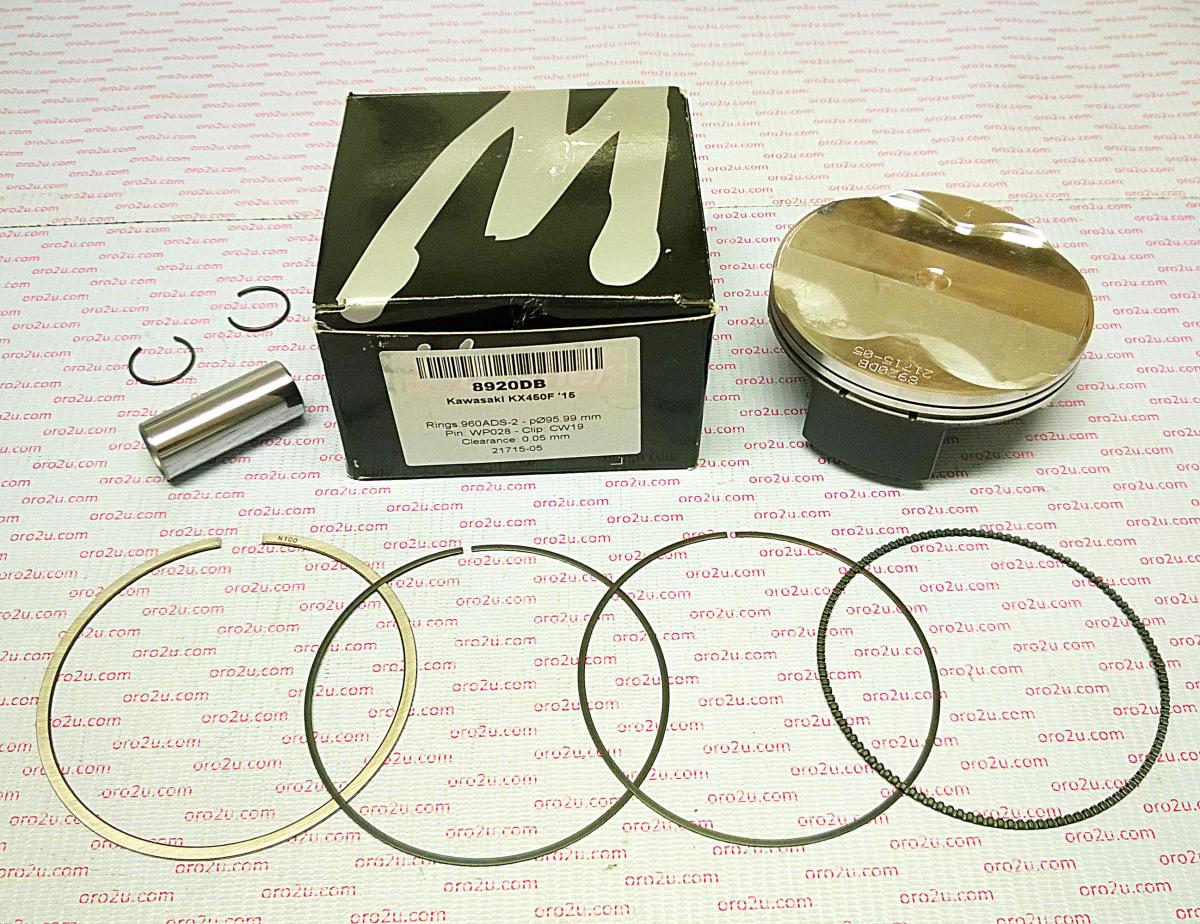

WOSSNER 96mm PISTON KIT A, KAWASAKI KX450F 2015

Wossner forged piston kit with a 96mm bore, designed for the 2015 Kawasaki KX450F. Engineered for strength and efficient heat transfer, the elliptical design provides a uniform bearing surface, reducing localized pressure and preventing piston collapse under heat expansion. Manufactured in Germany for high performance and durability.

Features

• Forged construction for increased strength and reliability
• Optimized heat transfer for efficient combustion
• Elliptical design for uniform bearing surface and even thrust load distribution
• Manufactured in Germany

Specifications

• Bore Size: 96mm
• Clearance: 0.05mm
• Compression Ratio (Wossner): OEM
• OEM Compression Ratio: 12.80:1
• Dome Volume: +0.90 cm³
• Compression Height: 23.70mm
• Stroke: 62.10mm
• Displacement: 449 cm³
• Theoretical Weight: 259.00g

Cross-Reference OEM Part Numbers

• Wossner Part No.: 8920DA
• OEM Part No.: 13001-0766
• Wiseco Part No.: 40125M09603

Vehicle Fitments

• Kawasaki KX450F (2015)
