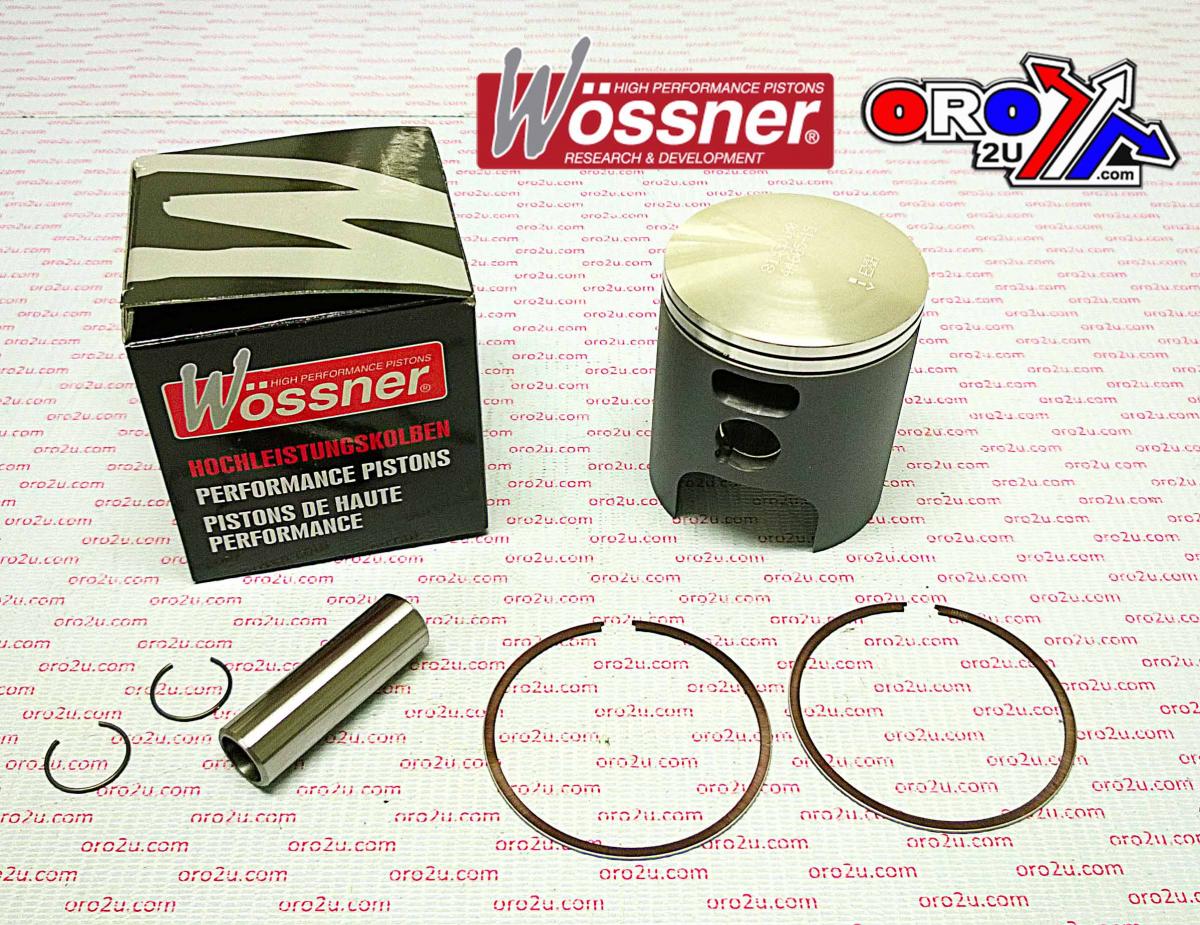

WOSSNER 63mm FORGED PISTON KIT SUZUKI PE175 1980-1984

Wossner forged piston kit with a 63.00mm bore and 62.94mm diameter, designed for Suzuki PE175 models. Manufactured in Germany, this piston offers superior strength and design, ensuring optimal heat transfer to cylinder walls. Its elliptical design provides a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse.

Features

• Forged construction for superior strength
• Optimized heat transfer for efficient combustion
• Elliptical design for uniform load distribution
• Manufactured in Germany

Specifications

• Bore: 63.00mm
• Diameter: 62.94mm
• Display (cm³): 172
• Stroke (mm): 57.00
• Clearance (mm): 0.06
• Wossner Compression Ratio: 2-Stroke
• OEM Compression Ratio: 2-Stroke
• Compression Height (mm): 31.80

Cross-Reference OEM Part Numbers

• Wossner Piston Suzuki PE175 (PN# 8193D100)
• Lock P/N: CW16
• Pin P/N: WP041
• Ring Set P/N: RSB6300 x 2

Vehicle Fitments

• Suzuki PE175 (1980-1984)
