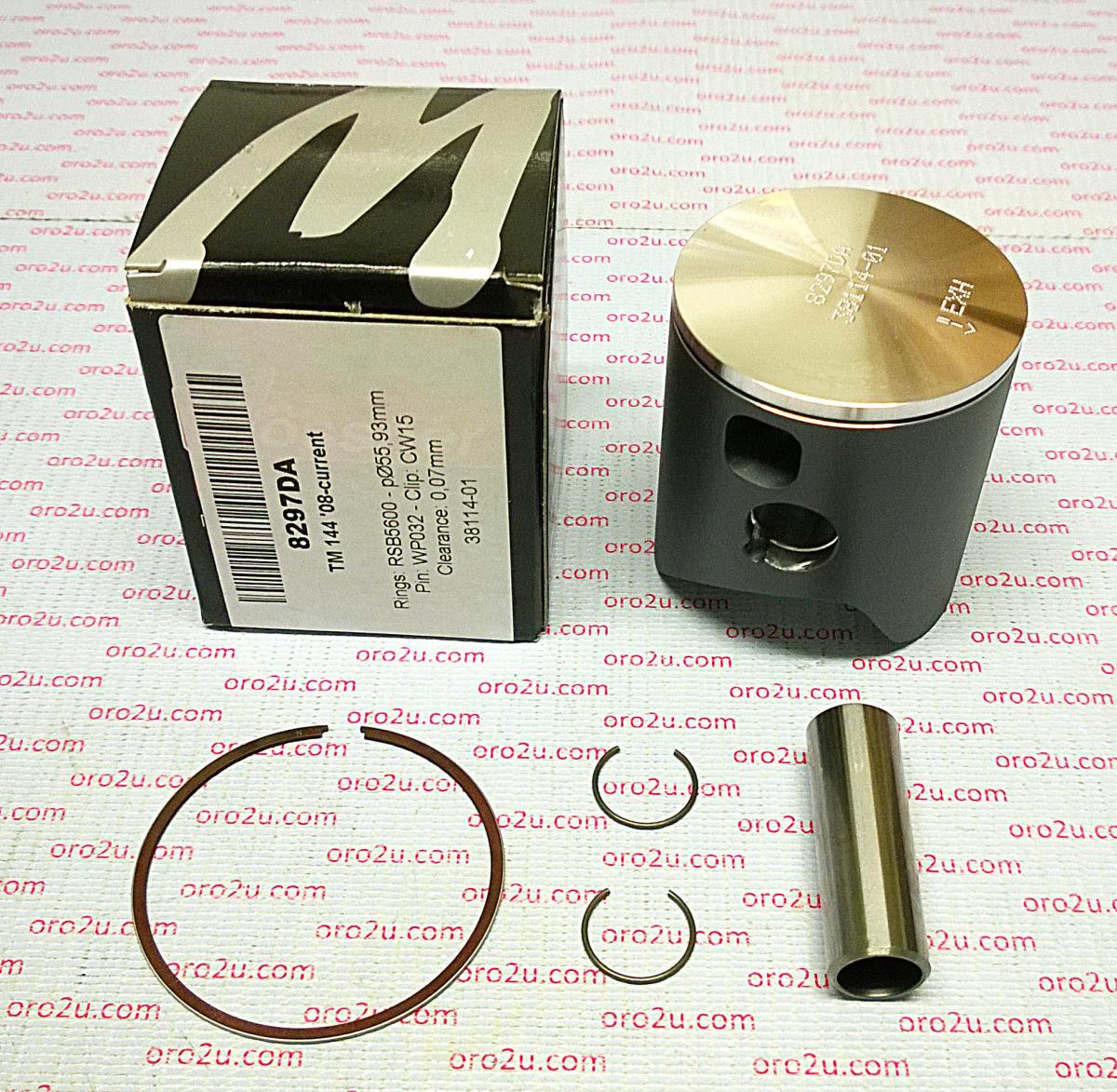

WOSSNER 56mm FORGED PISTON KIT TM EN144 2008-2015, MX125 2008-2015

Wossner forged piston kit designed for TM 144 (2008-2015). Engineered for superior strength and optimal heat transfer, these pistons feature an elliptical design to ensure uniform bearing surface under heat expansion, reducing localized pressure and preventing piston collapse. Manufactured in Germany.

Features

• Forged piston for increased strength and durability
• Optimized heat transfer for efficient combustion chamber performance
• Elliptical design for even thrust load distribution and reduced piston collapse
• Manufactured in Germany

Specifications

• Bore Size: 56.00mm
• Actual Bore Diameter: 55.93mm
• Displacement: 143 cm³
• Stroke: 58.20mm
• Clearance: 0.07mm
• Wossner Compression Ratio: 2-stroke
• OEM Compression Ratio: 2-stroke
• Compression Height: 29.10mm
• Theoretical Weight: 148.00g
• Lock Part Number: CW15
• Pin Part Number: WP032
• Ring Set Part Number: RSB5600

Vehicle Fitments

• TM 144 (2008-2015)
