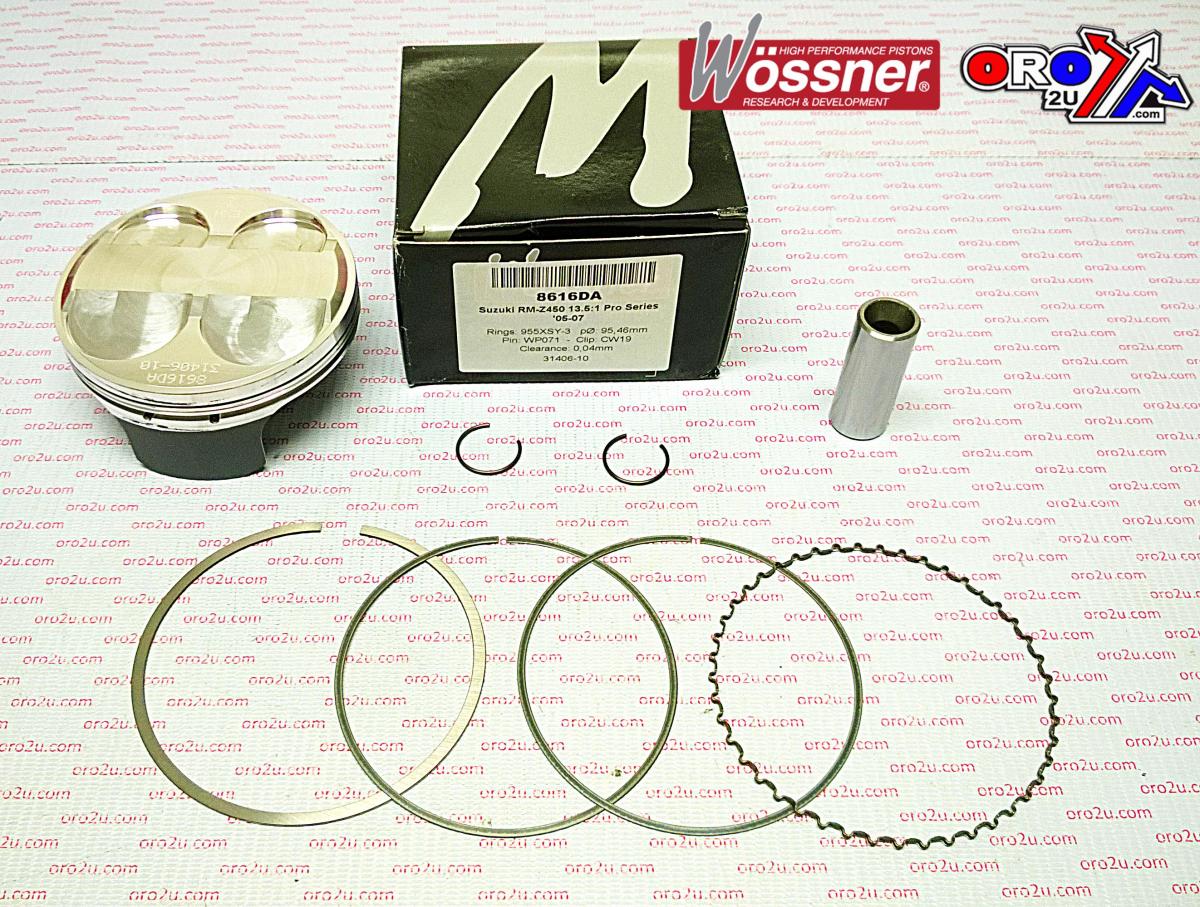

PISTON 05-07 RMZ450 95.50 HC FORGED WOSSNER KIT 8616DA

Wossner forged piston kit designed for high compression and durability. Engineered for optimal heat transfer to cylinder walls, ensuring efficient combustion. The elliptical design provides a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse. Manufactured in Germany to high-quality standards.

Features

• High-compression forged piston for enhanced performance
• Optimized heat transfer for efficient combustion
• Elliptical design to prevent piston collapse
• Manufactured in Germany
• Two-ring piston design

Specifications

• Bore Size: 96.00mm
• Actual Bore Diameter: 95.94mm
• Displacement: 449 cm³
• Stroke: 95.46mm
• Clearance: 0.04mm
• Wossner Compression Ratio: 13.50:1
• OEM Compression Ratio: 12.00:1
• Dome Volume: +1.40 cm³
• Compression Height: 22.30mm
• Theoretical Weight: Not specified

Included Components

• Lock Part Number: CW19
• Pin Part Number: WP037
• Ring Set Part Number: 955XSY
• Rod Part Number: P4012

Cross-Reference OEM Part Numbers

• 12111-35G01-0F0

Vehicle Fitments

• Suzuki RM-Z450 (2005-2007)
