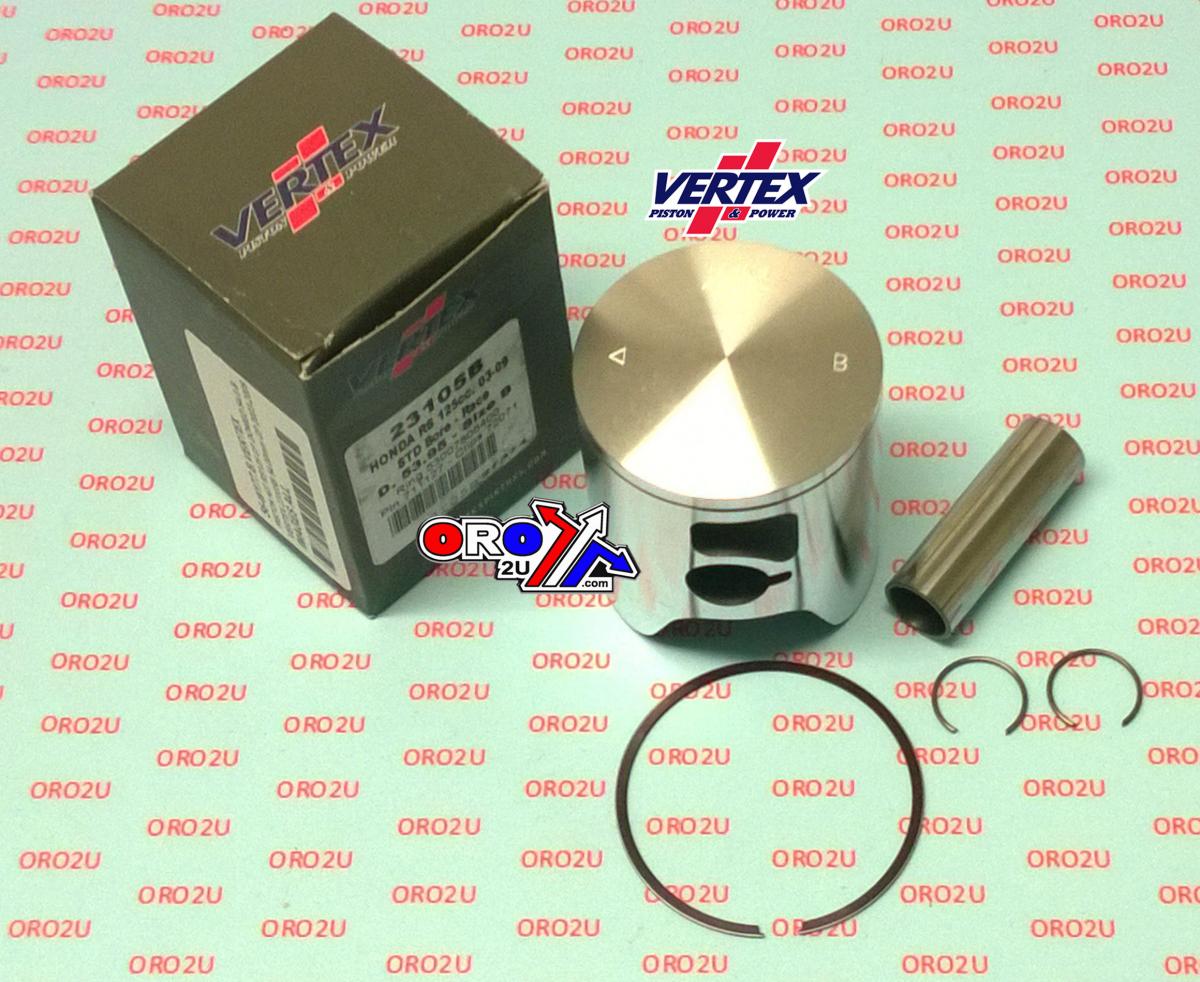

VERTEX 53.95mm PISTON KIT B,HONDA RS125/GP 03-07, DOMED PISTON

VERTEX UK PISTON KIT FORGED - 23105B 1-RING

Vertex "kit " �DOME TOP �piston for the Honda RS 125

These are a good alternative to the Standard HRC pistons at a much better price �

Piston kit comes with �.8mm flat ring Ring , Pin , and 2 x clips �

Its very important to prep them well , by champhering all the skirts ,and the ring groove ,as well as setting the ring gap , as the ring fits all sizes ( IE the biggest ) �

Ring gap is at the back , so runs over the rear boost port , requiring good champhering of the rear port .

I recommend the ring is changed half way through the 300 to 350 KM life of the piston , to prevent the ring locating tag breaking.

�All Vertex Pistons Feature: �
- Standard pistons and components are OEM replacements.
- Kits include piston, rings, wrist pin and circlips.
- All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
- Replacement rings are sold individually.
- Made in Italy.
- Fitted in many oem bikes as STD.

�

SPECIFICATION:

• BORE SIZE. � 54.00mm � [B 53.95mm]

Replacement Parts.

• Rings. � 53007805400 Need 1,
• Pin. � � 711127,
• Clips. 72071,

MODEL FITMENT:

• HONDA RS125, GP, � 2003-2009 DOME
