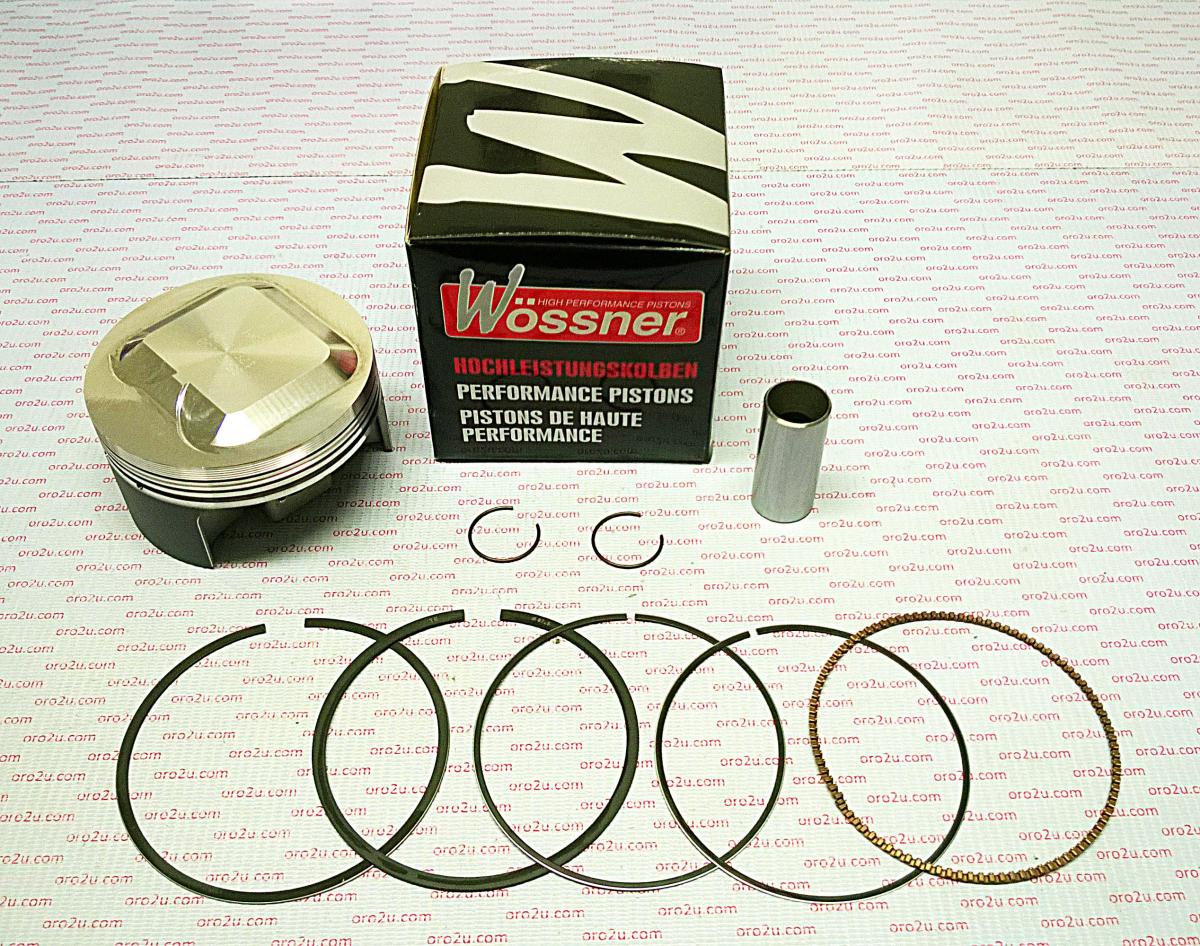

WOSSNER 98mm FORGED PISTON KIT KAWASAKI KLR600 1984-1987

Wossner forged piston kit with a 98.00mm bore, designed for Kawasaki KLR600 models. Engineered for optimal combustion chamber heat transfer and uniform bearing surface under heat expansion, reducing localized pressure and piston collapse. Manufactured in Germany for durability and precision.

Features

• Forged piston for superior strength and design
• Optimized heat transfer to cylinder walls
• Elliptical design for uniform bearing surface and even thrust load distribution
• Manufactured in Germany

Specifications

• Bore: 98.00mm (+2.00mm oversize)
• Standard size piston (PN# 8509D200)
• Lock Part Number: CW23
• Pin Part Number: WP008
• Ring Set Part Number: 980XSY
• Displacement: 564 cm³
• Stroke: 62.10mm
• Clearance: 0.05mm
• Wossner Compression Ratio: OEM
• OEM Compression Ratio: 12.80:1
• Dome Volume: +0.90 cm³
• Compression Height: 23.70mm
• Theoretical Weight: 259.00g

Cross-Reference OEM Part Numbers

• Not provided

Vehicle Fitments

• Kawasaki KLR600 (1984-1985)
