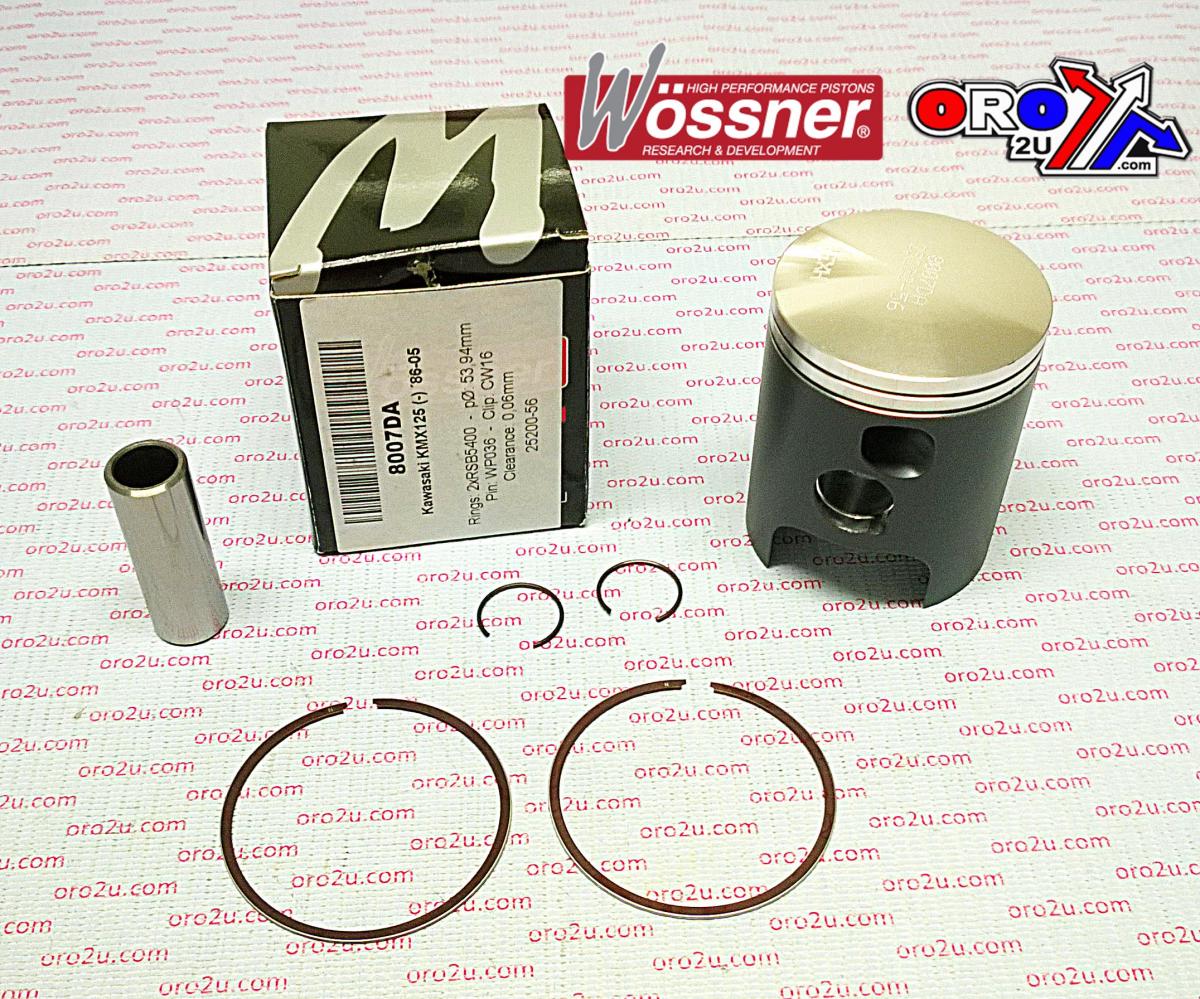

WOSSNER 56mm FORGED PISTON KIT KAWASAKI KMX125 1986-2005

Wossner forged piston kit designed for Kawasaki KMX 125 models with a 56.00mm bore. Engineered for optimal heat transfer and uniform bearing surface distribution, preventing piston collapse. Manufactured in Germany for durability and precision.

Features

• Forged construction for superior strength and durability
• Optimized heat transfer for improved engine performance
• Elliptical design ensures even pressure distribution, reducing localized stress
• Manufactured in Germany for high-quality performance

Specifications

• Bore Size: 56.00mm
• Actual Bore: 55.94mm
• Displacement: 125 cm³
• Stroke: 54.40mm
• Clearance: 0.06mm
• Compression Ratio: 2-Stroke
• Compression Height: 32.80mm
• Lock Part Number: CW16
• Pin Part Number: WP036
• Ring Set Part Number: RSB5600 (2x)

Cross-Reference OEM Part Numbers

• Wossner Piston Part Number: 8007D200

Vehicle Fitments

• Kawasaki KMX 125 (1986-2005)
