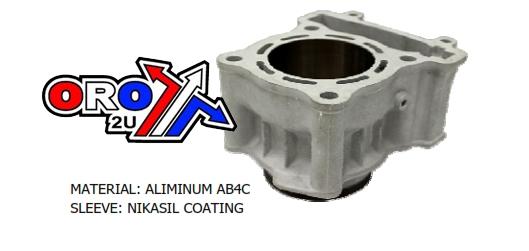

CYLINDER ONLY YAMAHA WR125 09-11 YZF-R 125 08-13, STD

YAMAHA
LC135 (CRYPTON X, SNIPER, SPARK 135, EXCITER),
2008-2012 YZF-R125 YZF-R15 FZ150i,
2008-2012 WR125R/X RIEJU 125,

CYLINDER ONLY STD BORE 52.00mm. PSYCHIC MX-09155

- BRAND NEW AND DESIGNED STRICTLY OFF THE OEM SPECIFICATIONS.
- CAST FROM AB4C ALUMINUM WITH NIKASIL PLATED SLEEVES.
- PSYCHIC CYLINDERS TO HAVE SOME OF THE BEST WEAR CAPABILITIES IN THE MARKET.
- MOST CYLINDERS ARE SIMPLE DROP IN INSTALL WITH NO CASE MODIFICATIONS NECESSARY.

- Sleeve. Nikasail.
- Hardness HV500~600.
- Thickness 0.08 +/- 0.02mm.
- Cylinder Material JIS AC4B-T6 Aluminum, hardness � HR65up.

Part No. 56-K139.52.CYL

Cross reference numbers ONLY.
22BE13111000, � 22BE13112000 , � 22B-E1311-10-00, � 22B-E1311-20-00 �

�

�
